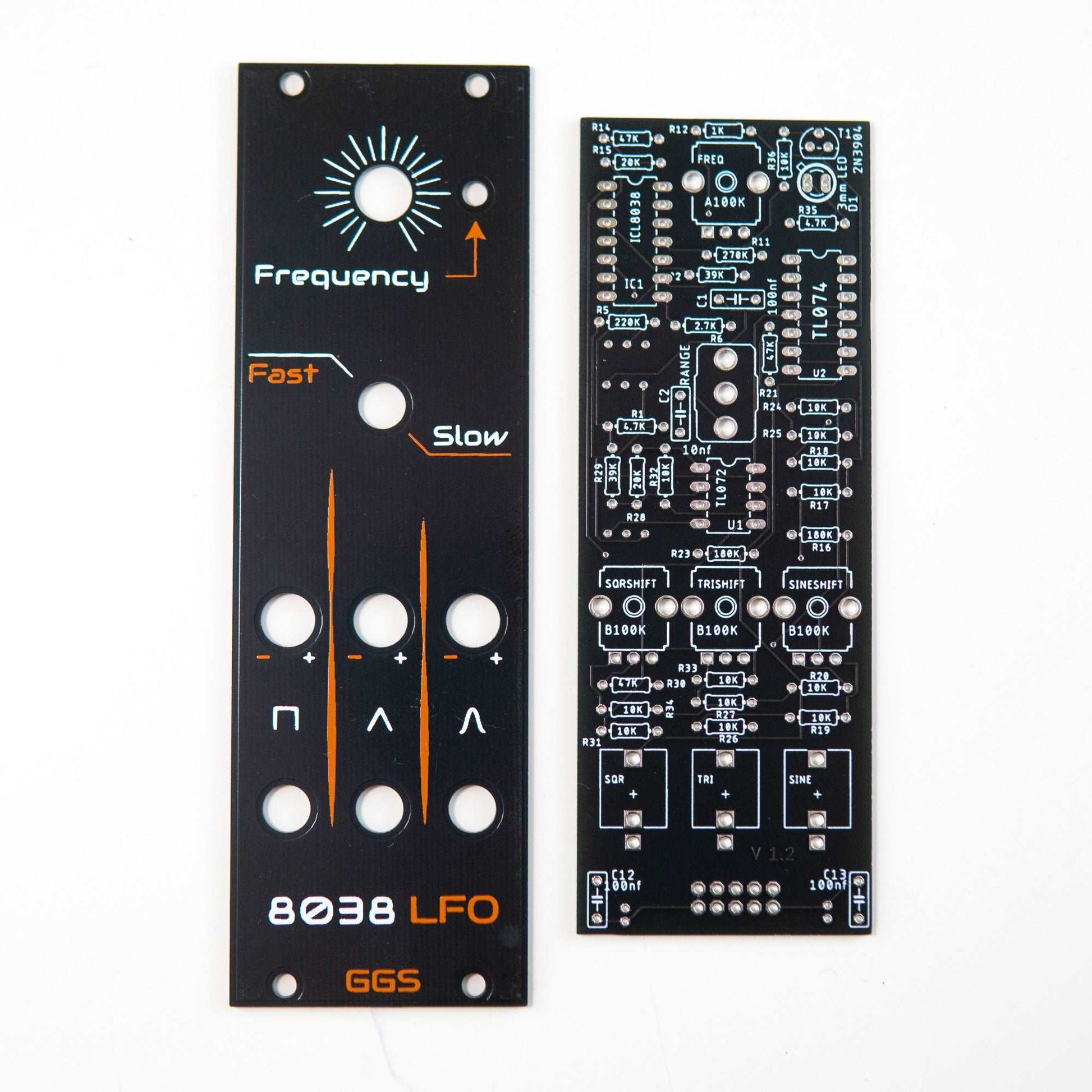

8038 Low Frequency Oscillator / LFO / Eurorack / PCB & Front Panel

8038 Low Frequency Oscillator / LFO / Eurorack / PCB & Front Panel

€16,99 EUR
€16,99 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

Size: 8HP

Skill Level: Intermediate

The 8038 LFO is a versatile analog function generator built around the classic ICL8038 integrated circuit. This compact unit provides a reliable and accurate source of three fundamental waveforms:

  • Square Wave: Ideal for digital and timing applications.
  • Triangle Wave: Excellent for linear sweep and modulation circuits.
  • Sine Wave: Smooth and accurate for audio and test applications.

Key Features:

  • Frequency Control:
    • Precise frequency adjustment with a dedicated potentiometer.
    • Convenient range switch for selecting the desired frequency band.
  • Output Control:
    • Independent output potentiometers for each waveform (square, triangle, sine) allow for easy DC offset adjustment.
  • Waveform Quality:
    • Trimmers for fine-tuning sine wave shape and symmetry ensure high-fidelity output.
  • Visual Feedback:
    • Integrated indicator LED provides clear visual confirmation of operation.

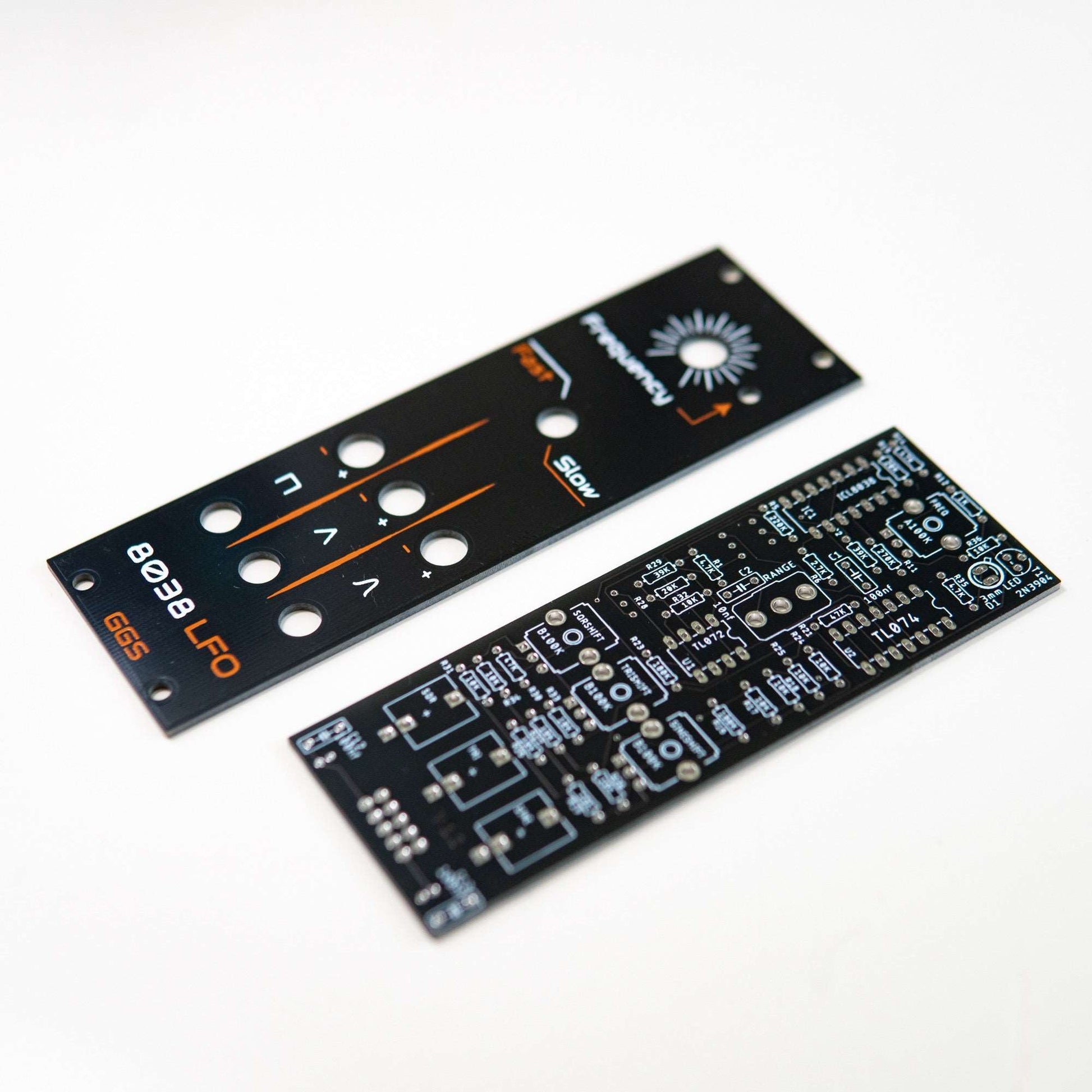

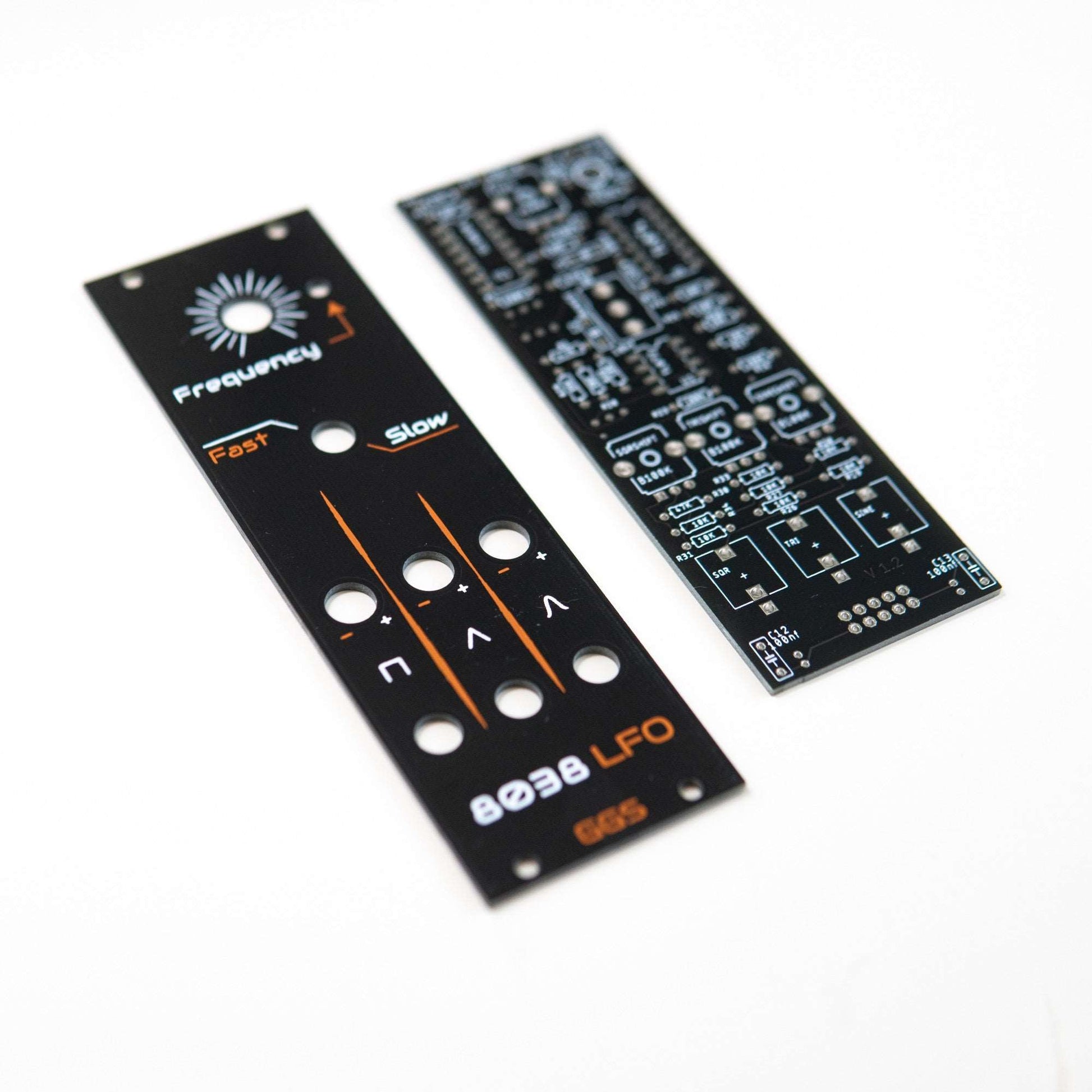

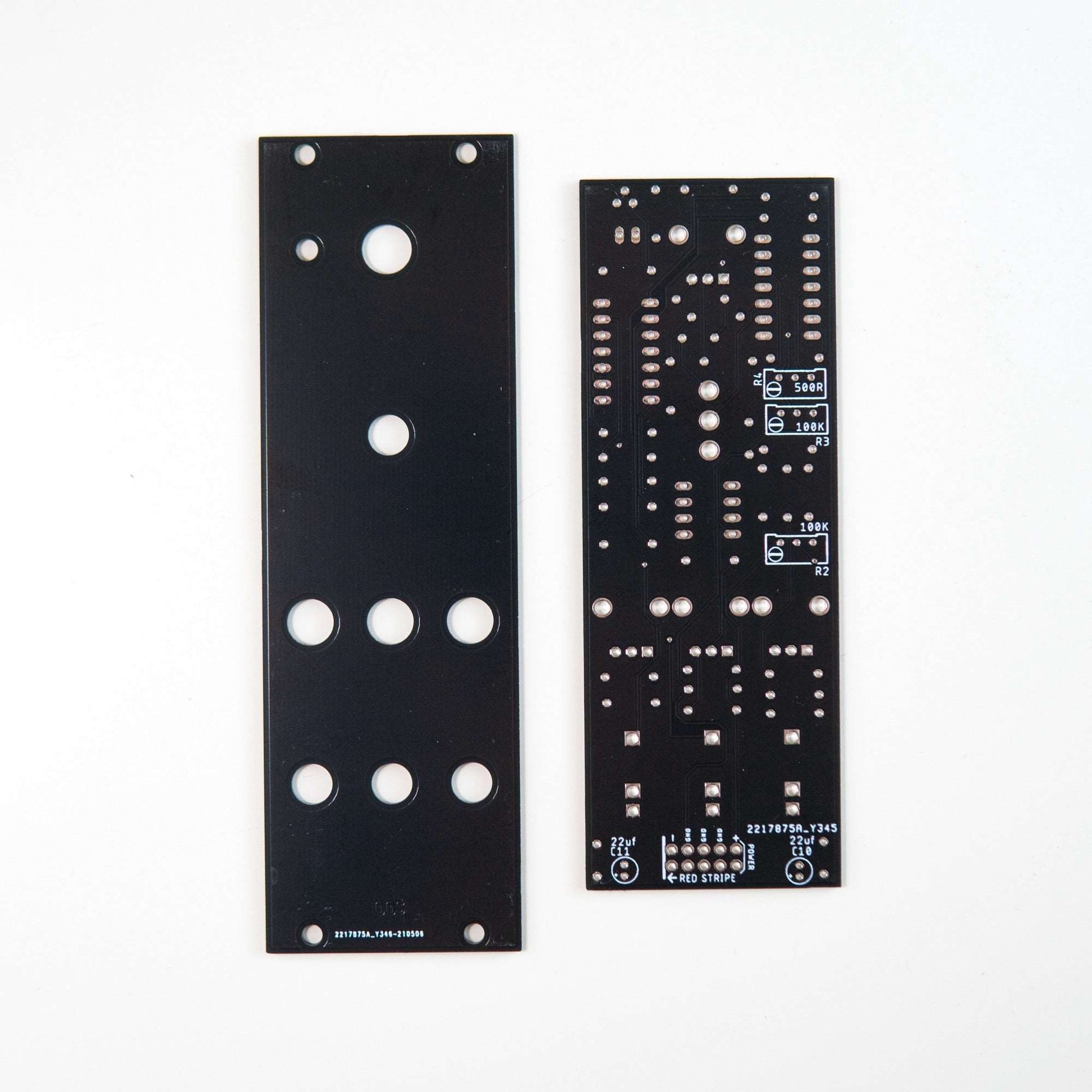

Front panel is also made out of PCB and screen printed by Hand.

PCBs are carefully wrapped in thick craft paper and secured with a custom sticker label for protection. We ship all PCBs in bubble-protected envelopes to ensure safe delivery. Your PCB will arrive safely packaged and ready for assembly.
