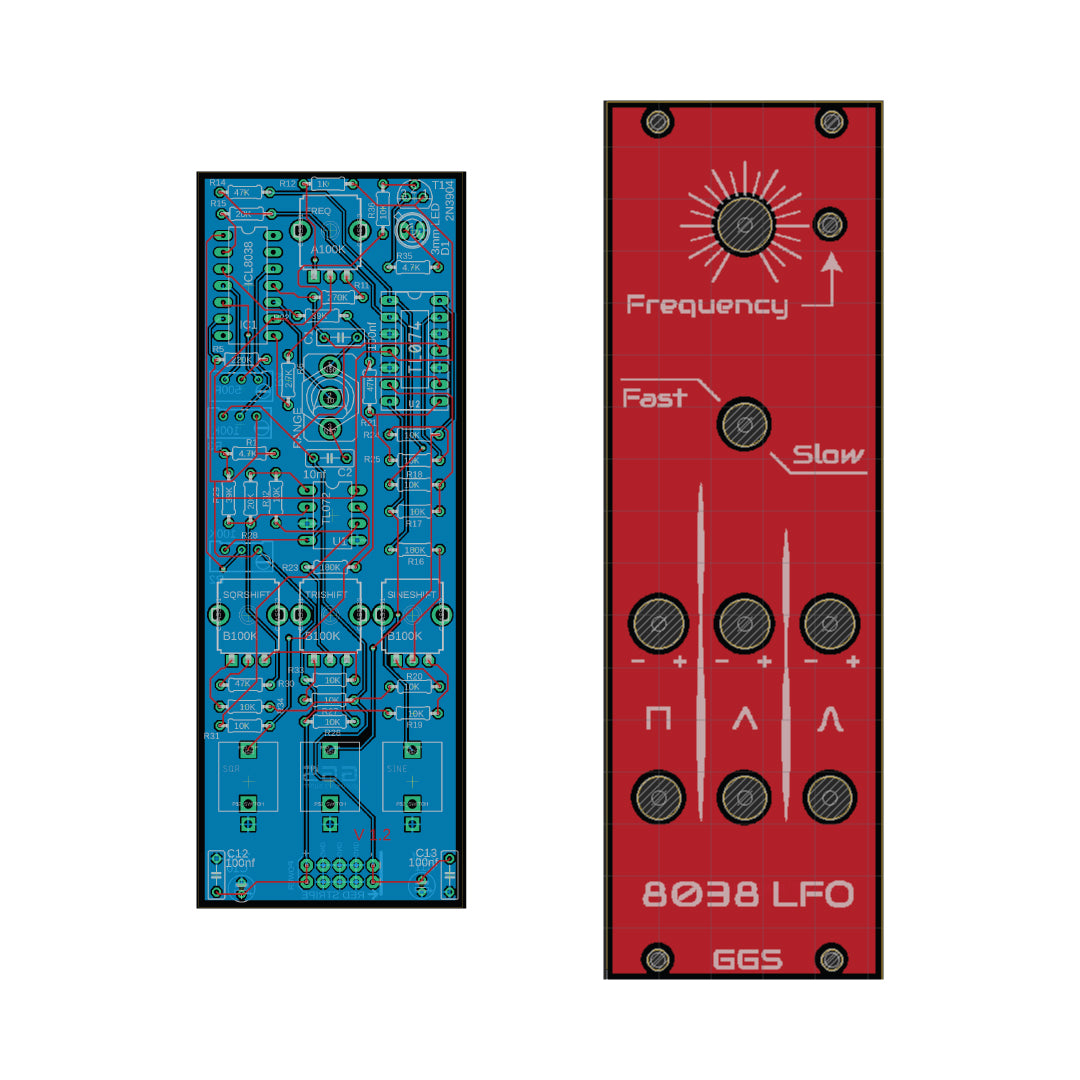

8038 LFO - Free Gerber File Download

This is the free Gerber file package for the discontinued 8038 LFO module. The ZIP file includes all PCB fabrication data required to manufacture the boards.

About the Design

The 8038 LFO is a classic analog function generator based on the ICL8038 IC. It produces three essential waveforms: square, triangle, and sine, making it a useful utility module for modulation, testing, and experimentation.

What’s Included

• Full Gerber files for PCB manufacturing
• Ready to upload to any PCB manufacturer
• Shared under the CC BY-NC license (free to use and modify for non-commercial purposes with attribution)

Waveforms

• Square Wave - Useful for timing, clocking, and digital-style modulation
• Triangle Wave - Excellent for linear sweeps and general modulation tasks
• Sine Wave - Smooth and stable output suitable for audio and testing

Please Note

This download contains files only.
No PCB, components, panel, or support is provided. You can choose to download it for free, or select the paid option (€5) to support the creator. The file is the same in both cases.

Simply upload the ZIP file to your preferred PCB manufacturer to order the boards.

Usage Guidelines:

You may use these Gerber files for personal, non-commercial projects, but you are not allowed to modify the files and claim them as your own work. The original branding or website information included in the files must remain intact.

New Design

I also have a new LFO design based on OTA. You can check it out here.
