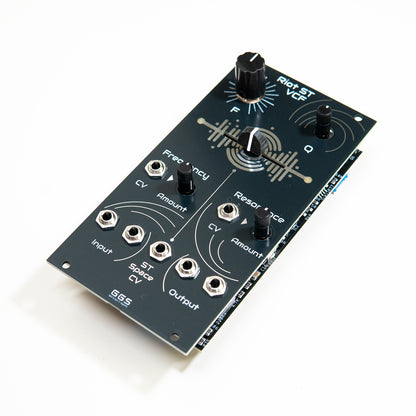

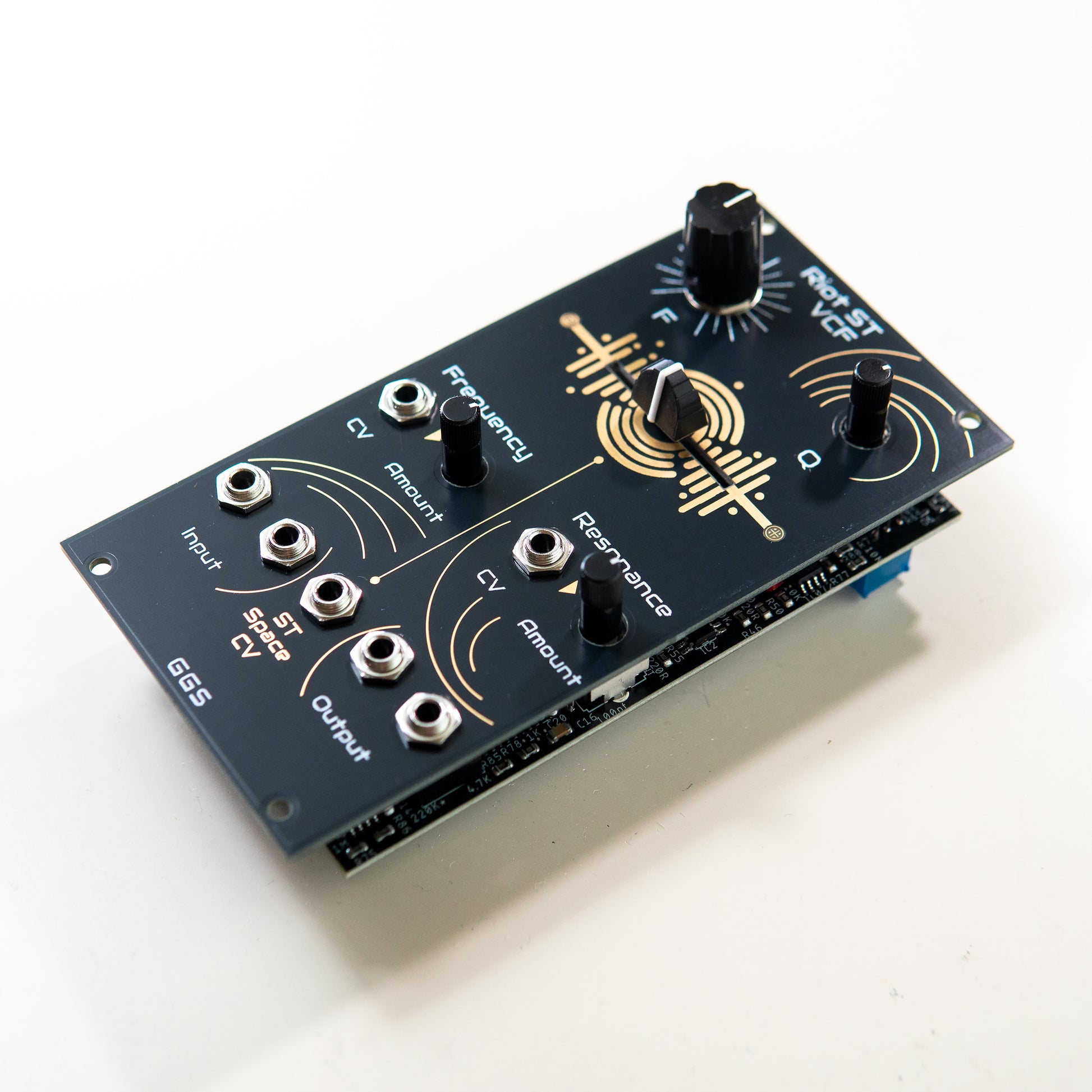

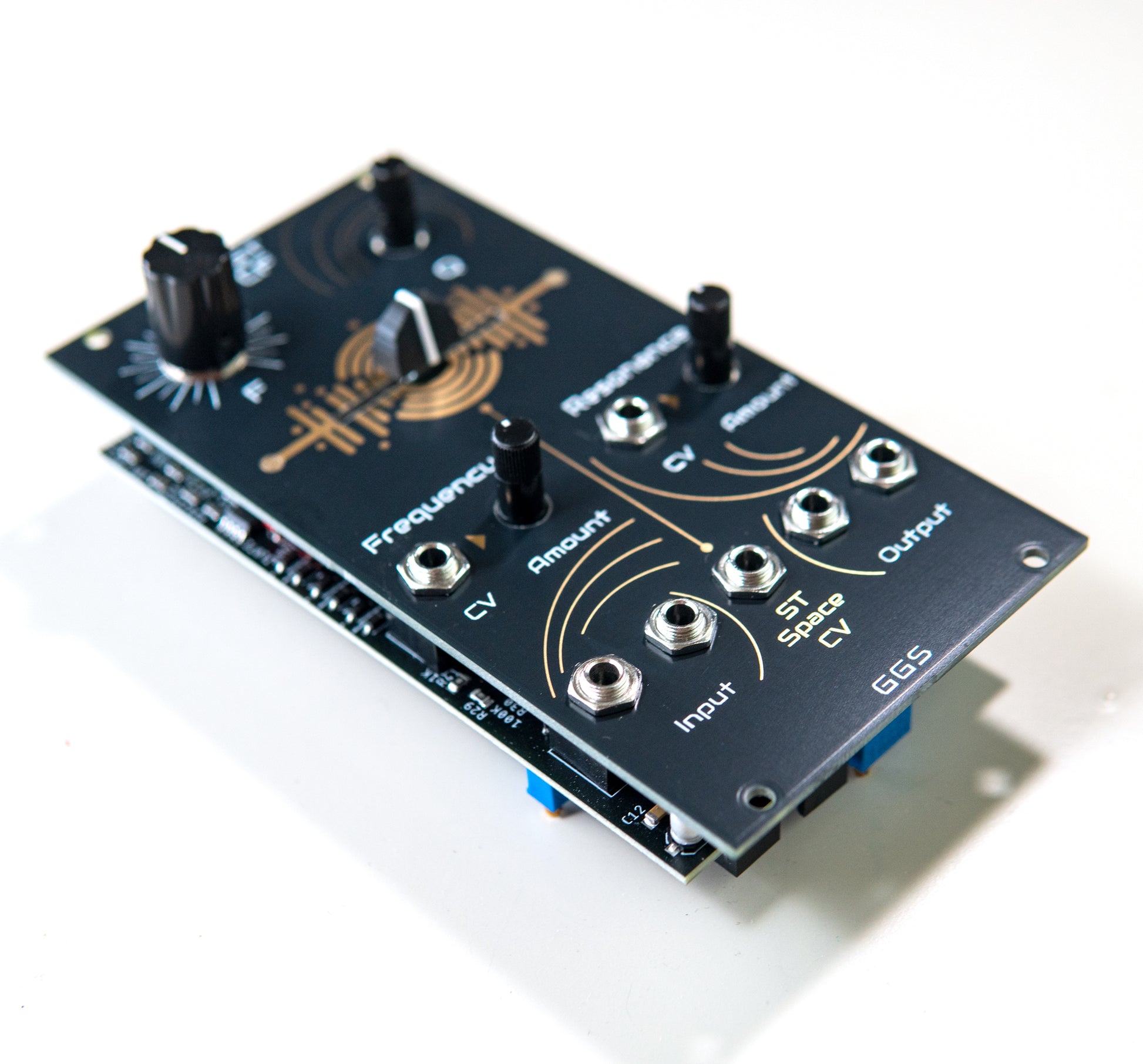

  • An eye-level, angled photograph of the Riot ST VCF, emphasizing its unique PCB art design. The module's black, white, and copper aesthetic is clearly visible, with the knobs and patch points casting subtle shadows.

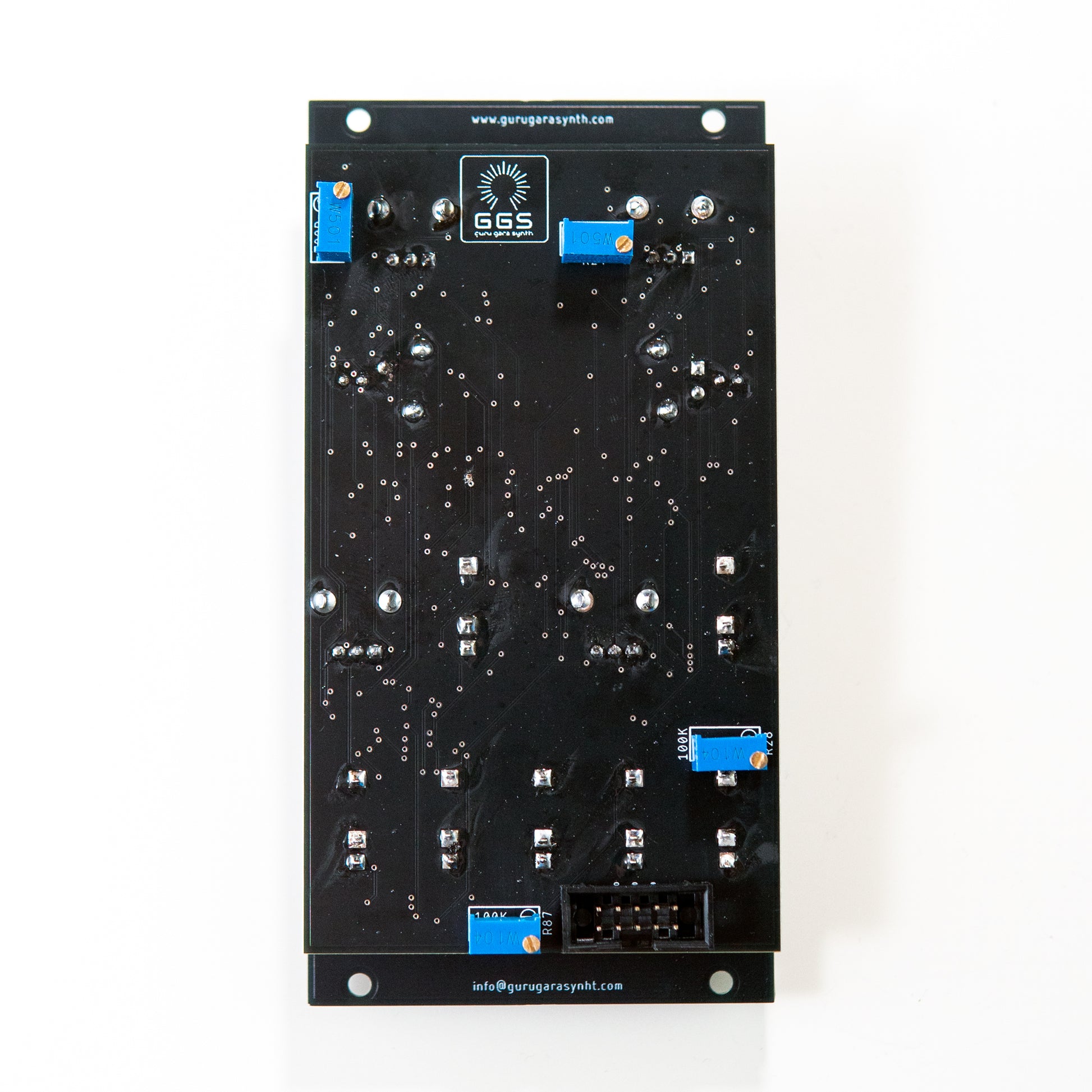

  • The rear view of the Riot ST VCF Eurorack module, revealing the power connector and several small trimmer potentiometers. The PCB board is visible, along with various electronic components.

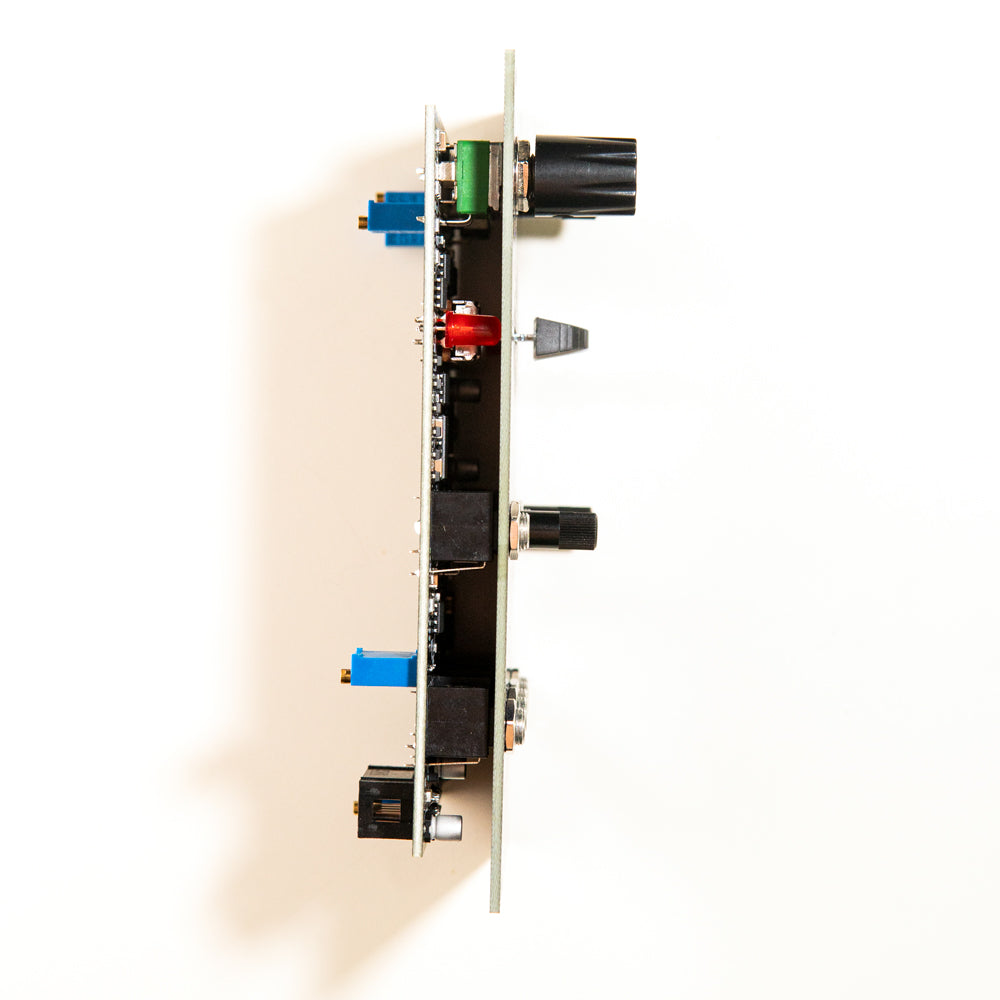

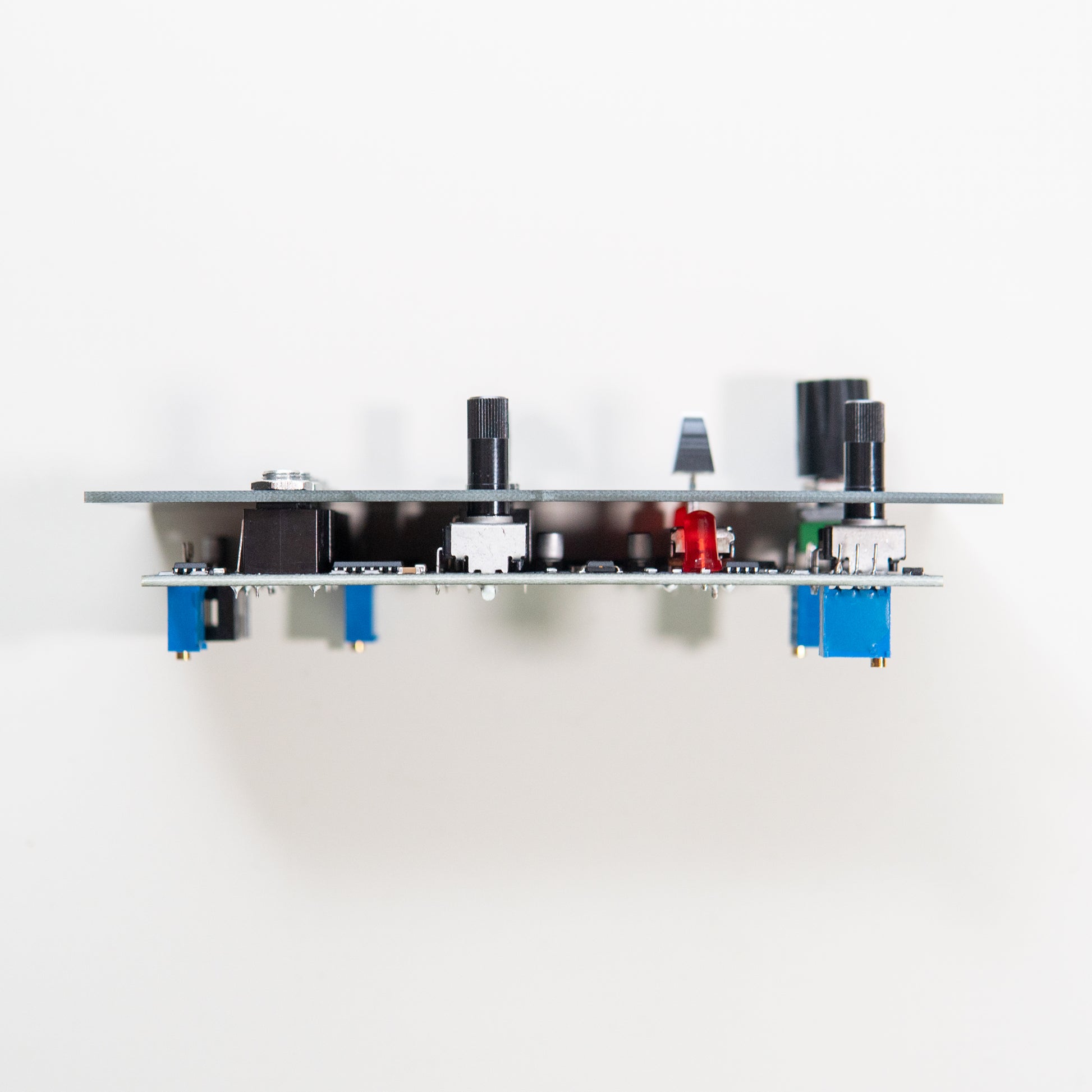

  • A side profile shot of the Riot ST VCF Eurorack module, illustrating its shallow depth. The slim design indicates it is "skiff friendly," meaning it will fit in compact Eurorack cases.
  • A photograph of the Riot ST VCF Eurorack module with text labels pointing to each control. The labels identify the top knobs as Frequency and Resonance, the central fader as Stereo Space, and the jack inputs and the knobs as the CV inputs for Frequency, Resonance, and Stereo Space. The module's stereo inputs and outputs on the bottom left and right are also clearly labeled.
1 8

Riot ST VCF - Stereo Low Pass Filter for Eurorack

Riot ST VCF - Stereo Low Pass Filter for Eurorack

€149,99 EUR
€149,99 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

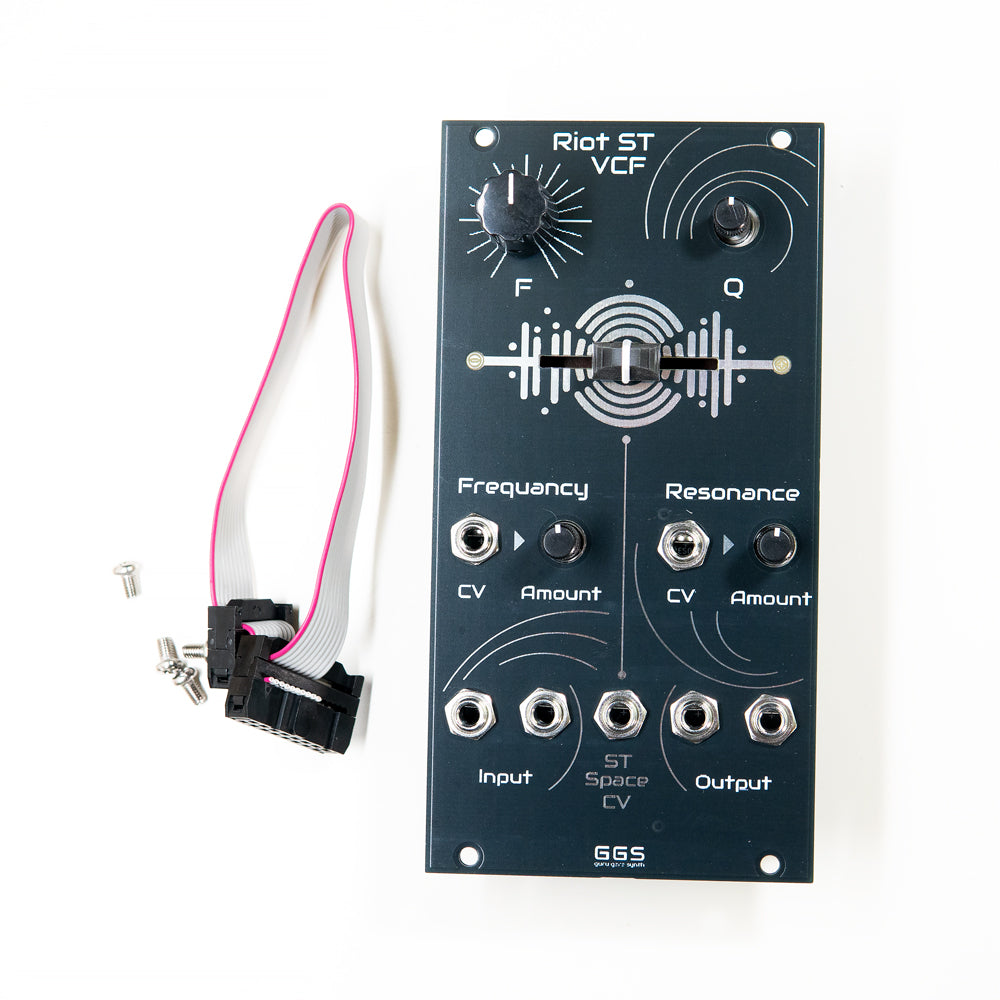

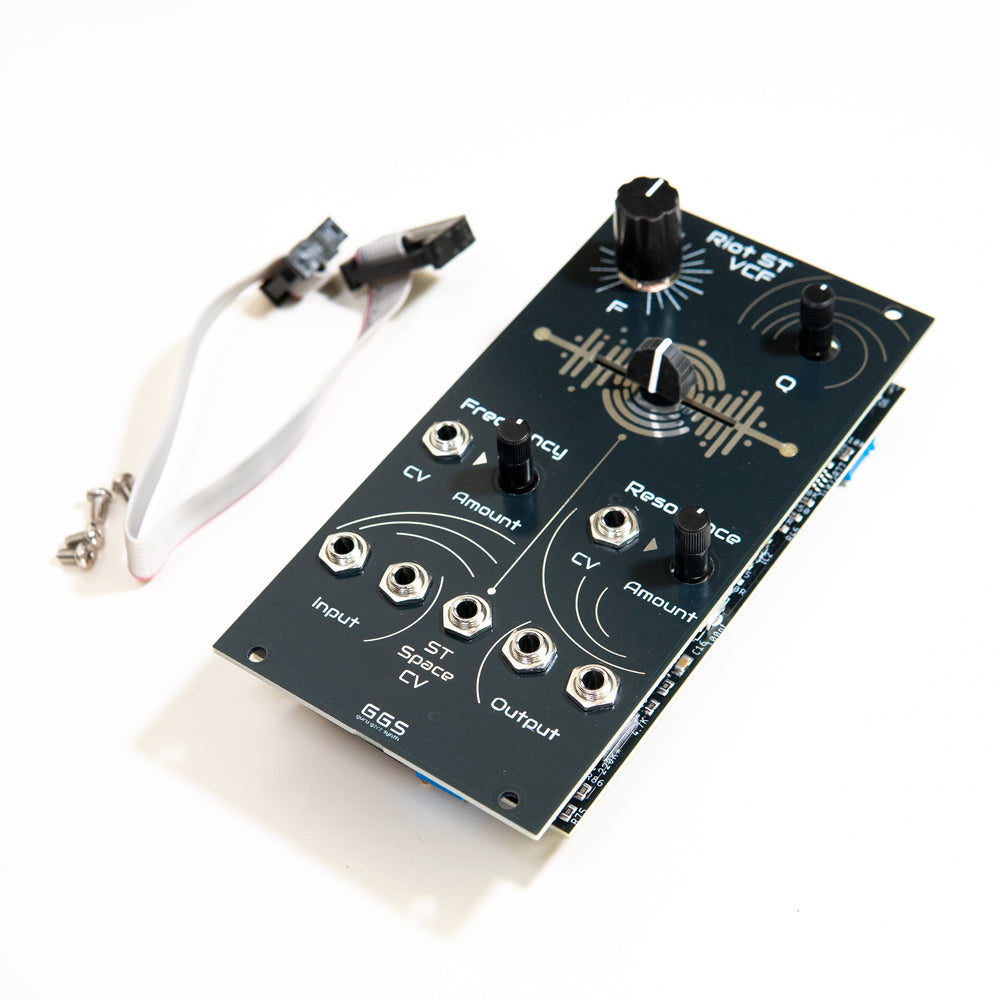

Riot ST VCF – Stereo Low-Pass Filter (Fully Assembled Eurorack Module)

The Riot ST VCF is a fully assembled analog stereo low-pass filter for Eurorack, designed to deliver a powerful, characterful sound with expressive stereo movement. Combining a thick low-end with refined resonance behavior, it offers both bold tone shaping and controlled modulation for modern modular systems.

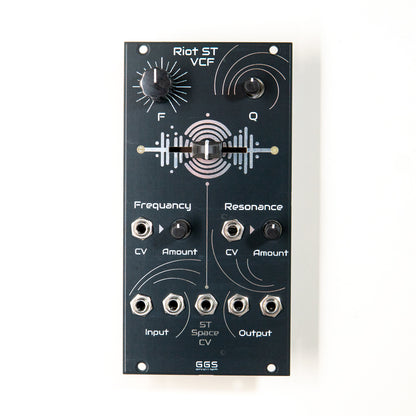

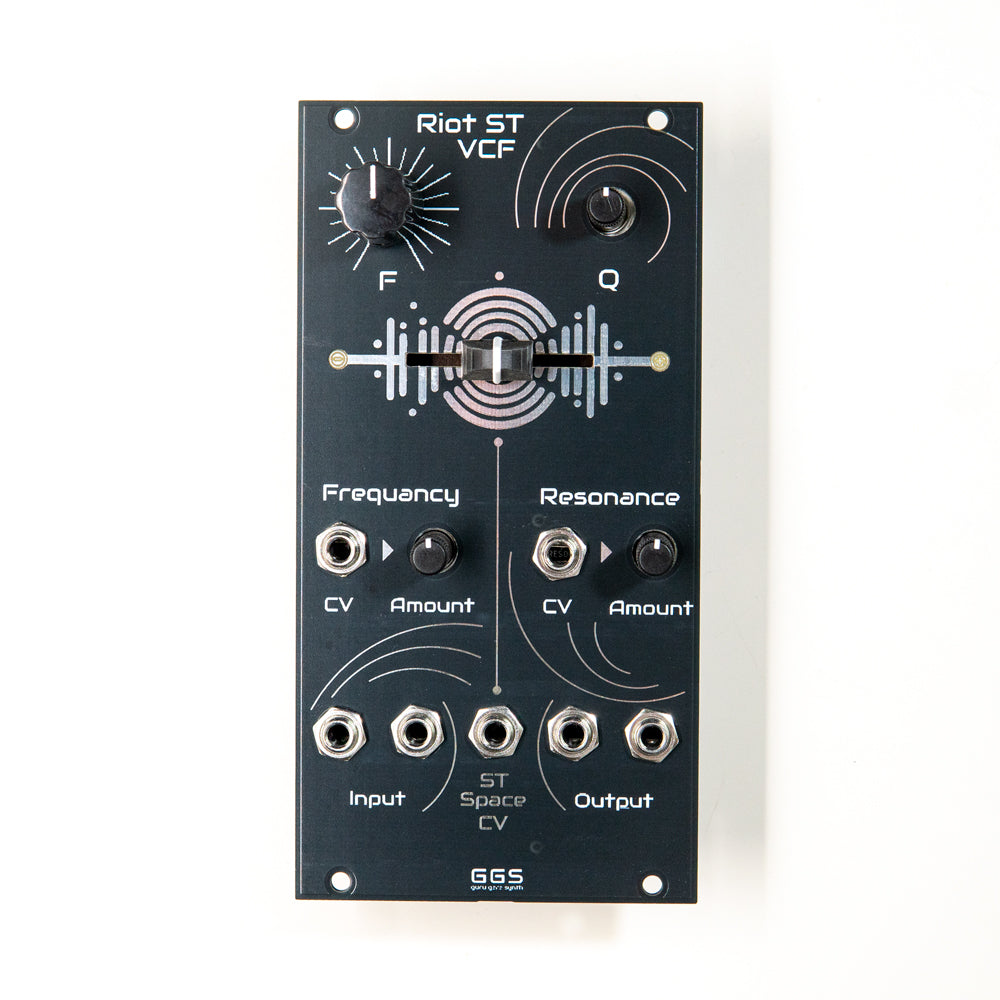

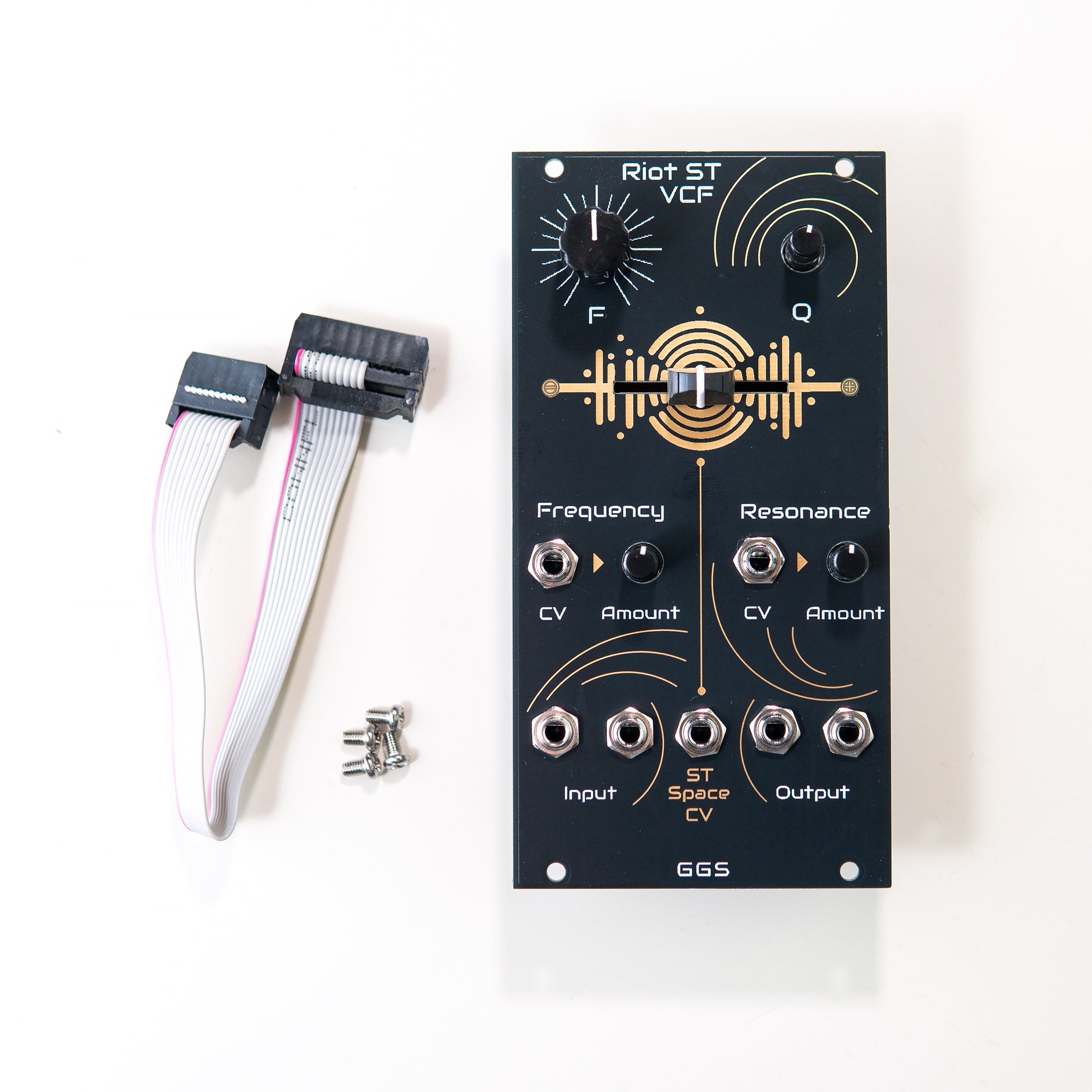

The module is housed behind a distinctive 12HP PCB front panel featuring black, white, and gold-plated PCB artwork, making it a striking visual centerpiece in any Eurorack setup.

Key Features

  • Stereo analog low-pass filter for Eurorack
  • True stereo inputs and outputs
  • Mono-to-stereo operation via internal switched jack
  • Stereo Space fader for animated stereo cutoff movement
  • CV control over Frequency, Resonance, and Stereo Space
  • Unique PCB art front panel with gold-plated traces
  • Smooth, controlled resonance suitable for musical modulation

Stereo Signal Path & Mono Compatibility

The Riot ST VCF features dedicated left and right audio inputs and outputs. When a mono signal is patched into the left input only, an internal switched jack automatically routes the signal to both channels, allowing mono sources to be processed in stereo without additional patching.

Stereo Space Control

The Stereo Space fader defines the relationship between the cutoff frequencies of the left and right filter channels:

  • Centered position: Both channels share the same cutoff frequency, behaving like a mono filter
  • Fader moved left or right: One channel’s cutoff increases while the other decreases by the same amount

This design creates width, motion, and depth without sacrificing tonal balance.

CV-Controlled Stereo Modulation

The Riot ST VCF provides CV inputs for Frequency, Resonance, and Stereo Space, allowing envelopes, LFOs, and sequencers to introduce dynamic stereo movement.

When a control voltage is patched into the Stereo Space CV input, the fader acts as a bipolar depth control:

  • Center position: Incoming CV has no effect
  • Move right: CV raises the right cutoff while lowering the left
  • Move left: CV raises the left cutoff while lowering the right

This enables responsive, evolving stereo modulation that remains musical and stable.

Sound Character

The filter core delivers a thick, weighty low-end with a resonance that emphasizes musical movement rather than harsh self-oscillation. This makes the Riot ST VCF well suited for basses, pads, drones, and animated stereo textures—especially when modulated.

Design & Build

The Riot ST VCF is fully assembled and ready to use. The PCB front panel is made from durable PCB material and finished with bold black, white, and gold-plated artwork, ensuring both reliability and a distinctive visual identity.

Technical Specifications

  • Format: Eurorack
  • Width: 12HP
  • Filter Type: Stereo low-pass
  • Audio Inputs: Stereo (mono-to-stereo compatible)
  • CV Inputs: Frequency, Resonance, Stereo Space
  • Current Draw:
    • +12V: 70 mA
    • −12V: 80 mA
    • +5V: 0 mA
  • Filter Core: OTA (Operational Transconductance Amplifier)





Video Demo

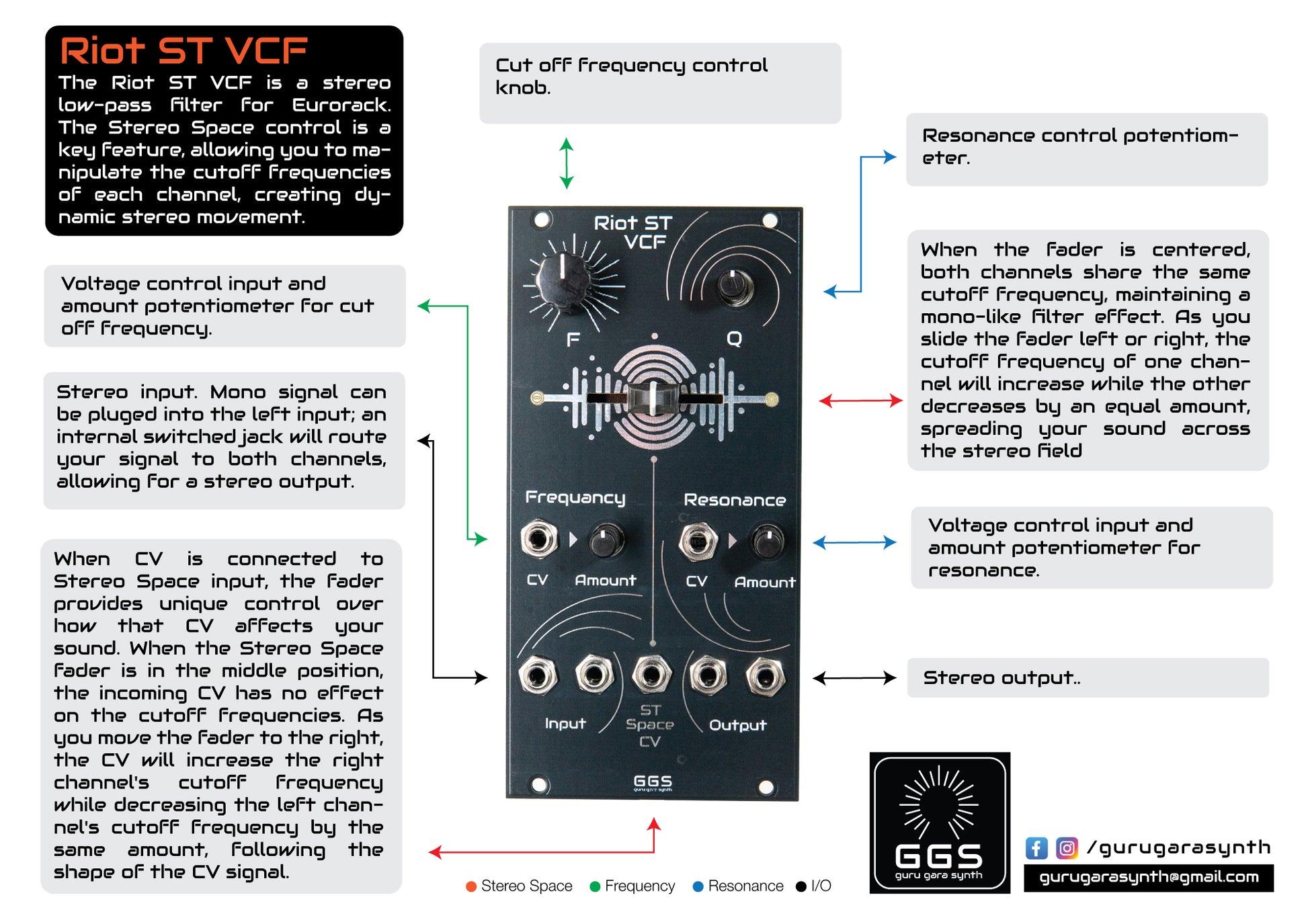

Riot ST VCF Info sheet Download
