RIM | Dual Attenuverter | DIY Eurorack Full Kit

The Rim Dual Attenuverter Eurorack Complete Kit is an essential DIY utility module designed to give you precise control over your control voltages and audio signals. This complete kit includes the PCB, front panel, and all required electronic components, making it an ideal choice for builders who want everything included in one package while saving time on sourcing parts from multiple suppliers.

To streamline the build process and ensure consistent performance, all essential SMD components are professionally assembled at the factory. The builder completes the module by installing the through-hole (THT) components, offering a satisfying DIY experience without the complexity of SMD soldering. This approach significantly reduces build time and lowers the risk of assembly errors, making it a reliable and time-saving option for both new and experienced DIY builders.

Concept & Design

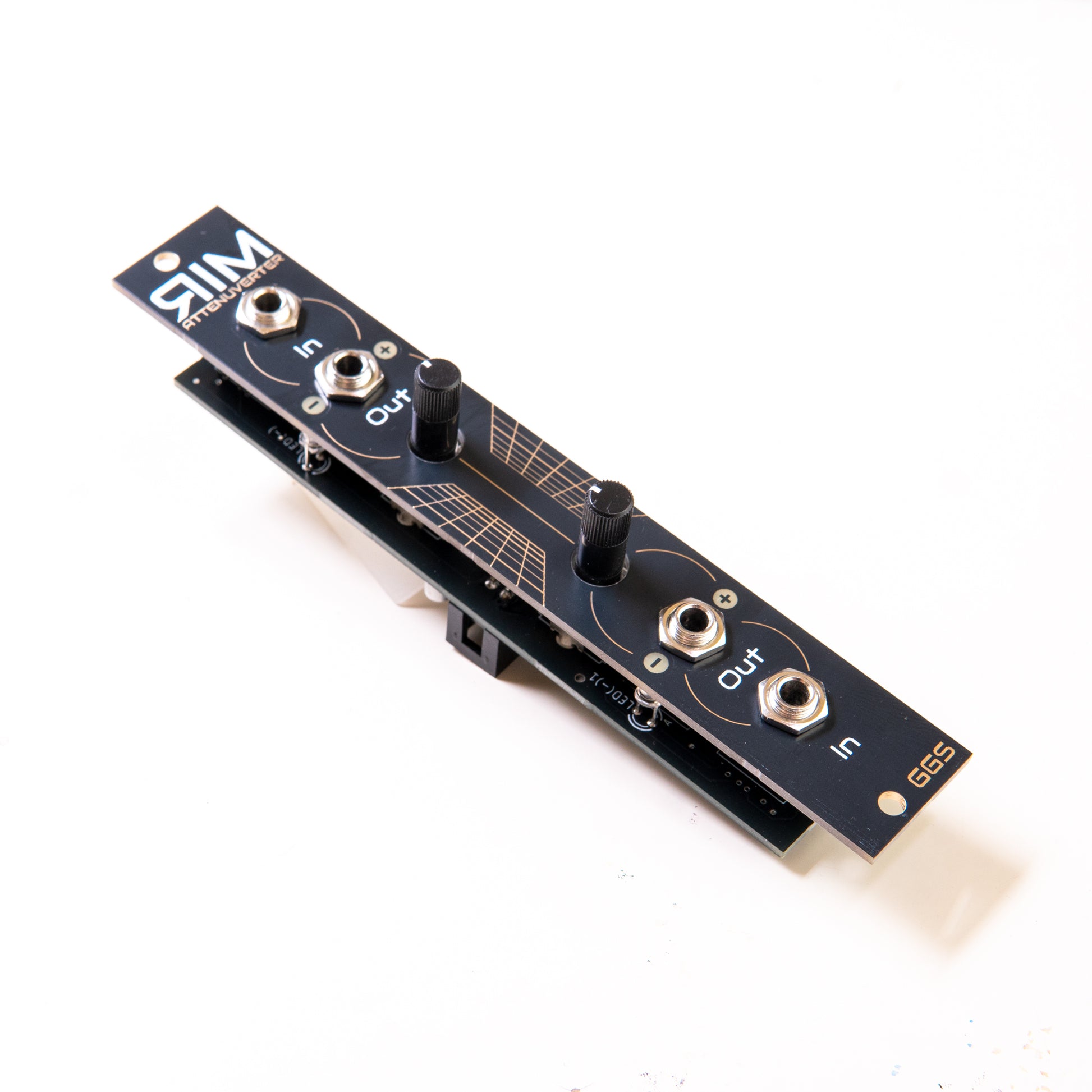

The name Rim is inspired by the event horizon of a black hole; the ultimate point of equilibrium where things are pulled either in or out, positive or negative. Mirroring this concept, the module features a beautifully symmetrical layout. When the potentiometers are in the middle position, the output is completely silent. Turning the pot clockwise increases the normal signal output, while turning it counterclockwise delivers an inverted, increased version of your signal.

Additionally, the top attenuverter is normalled to an internal +5V reference. When no input jack is inserted, it transforms into a steady, standalone control voltage generator capable of sweeping from -5V to +5V.

Key Features

• Complete Eurorack Utility Full Kit (PCB, front panel, and all components included)
• Factory-assembled SMD components for a quick and reliable build
• Dual independent channels with a sleek, symmetrical design
• Zero-output center position with normal output (clockwise) and inverted output (counterclockwise)
• Internal +5V normalization on the top channel for standalone -5V to +5V CV generation
• Compact 4HP Eurorack format

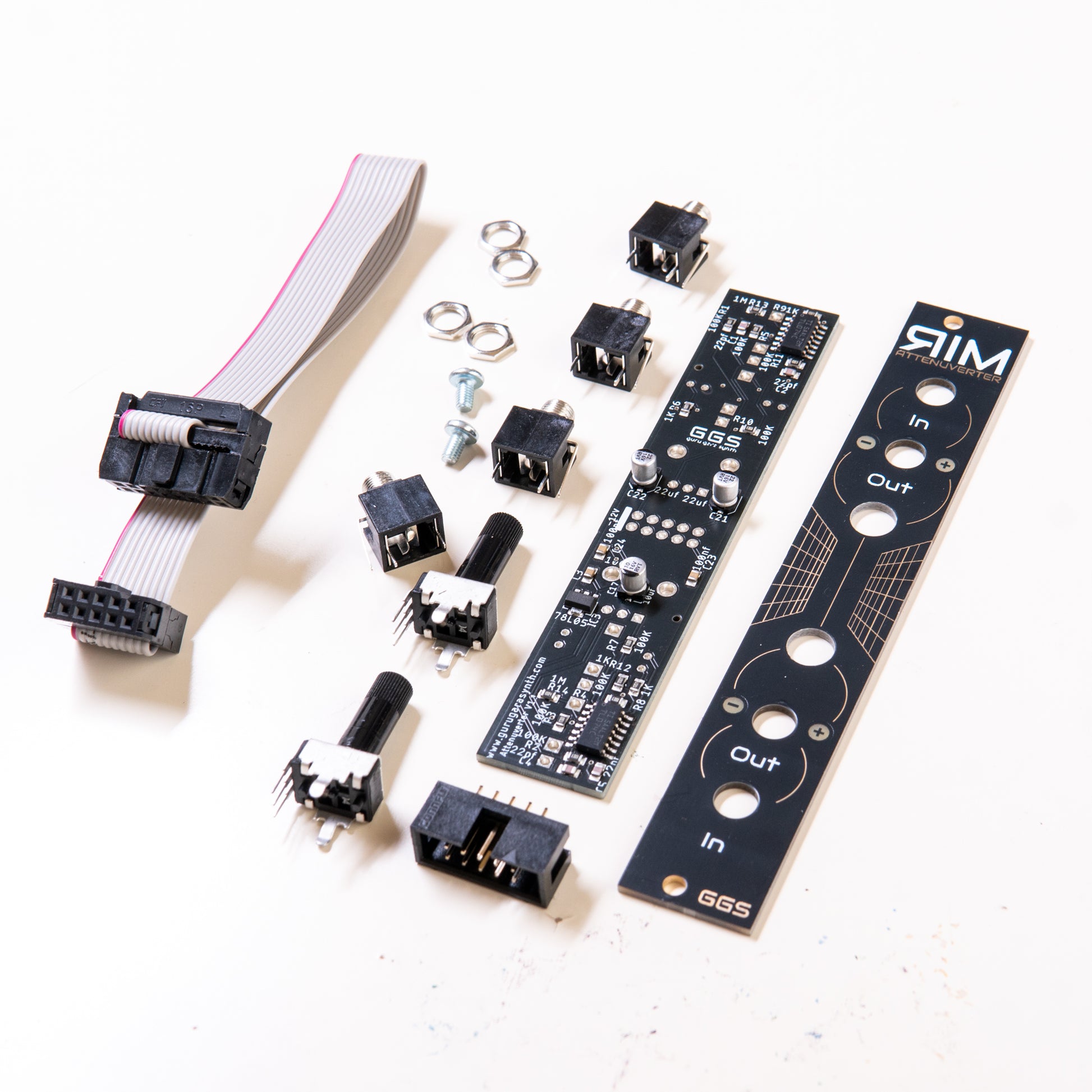

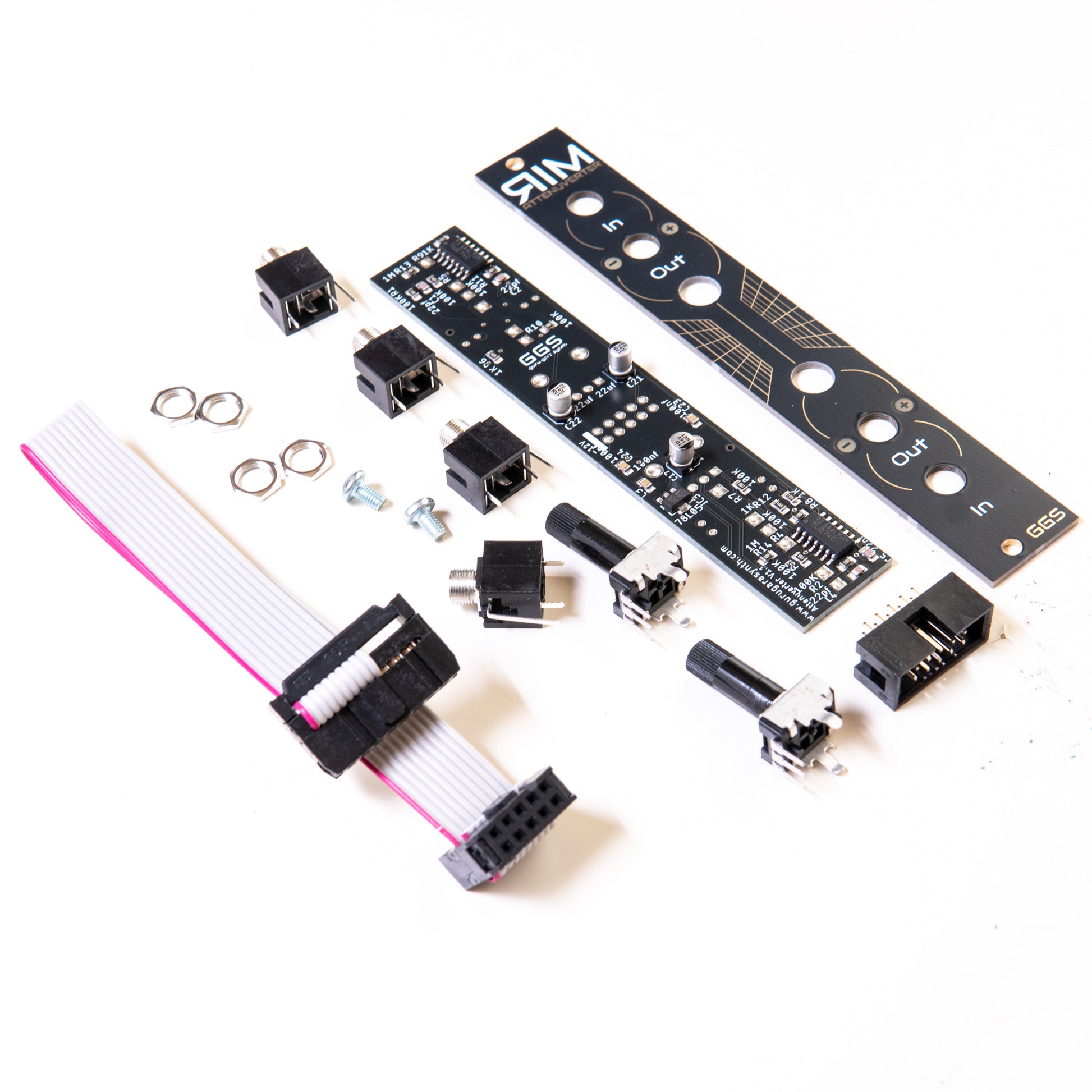

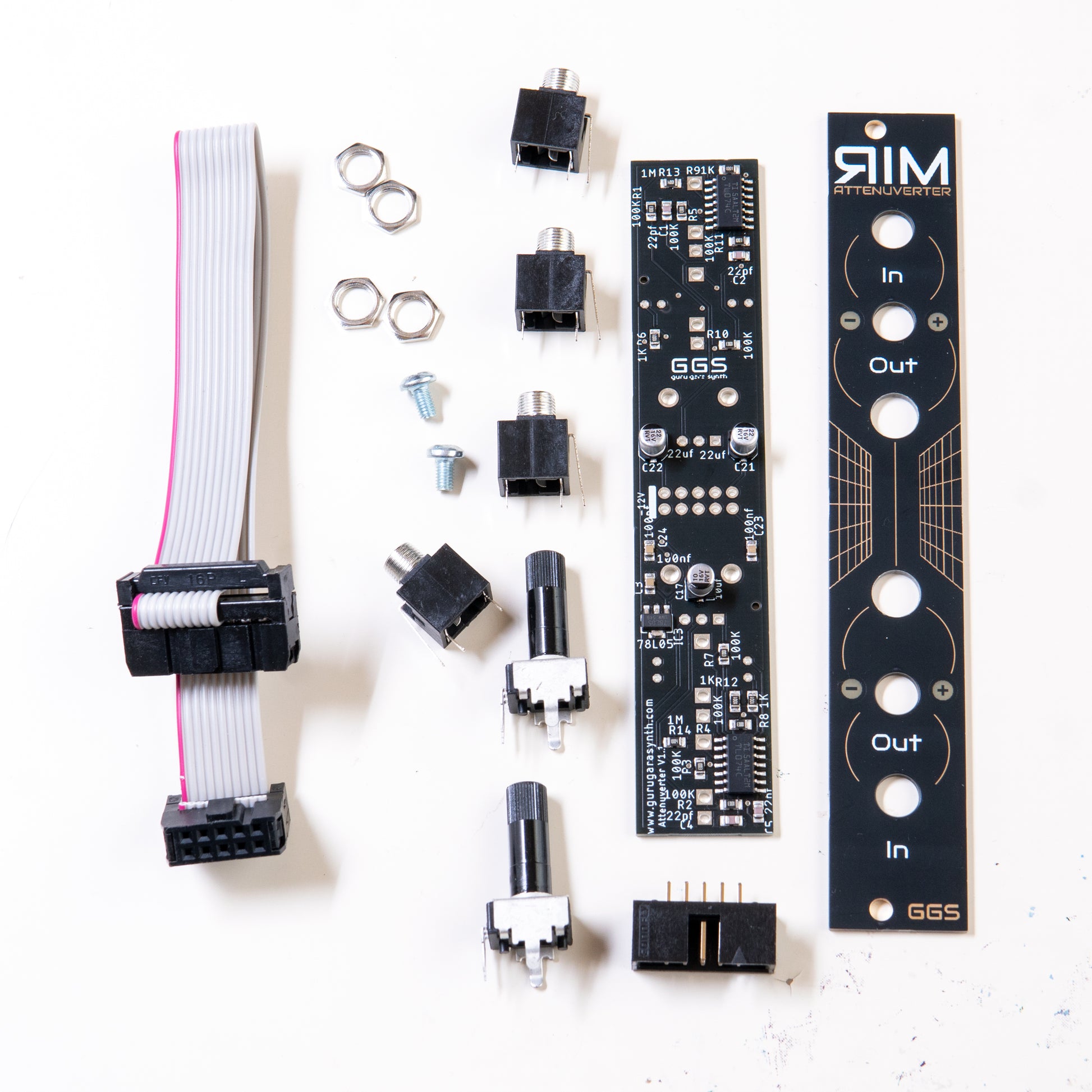

Included Components

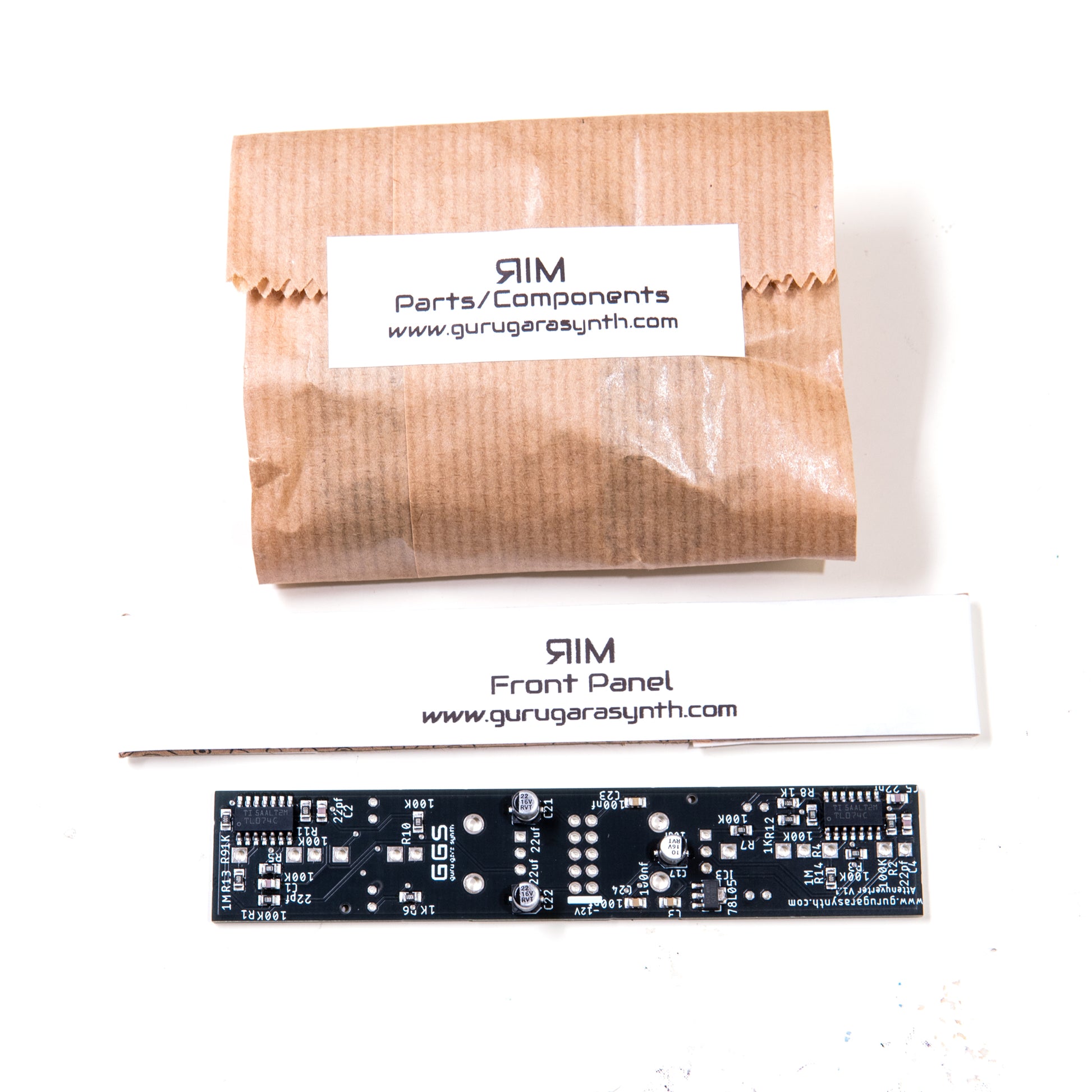

• Eurorack PCB with pre-assembled SMD components
• PCB front panel (black PCB with factory-printed white graphics and gold-plated exposed copper design)
• Jack sockets
• Potentiometers
• IDC power socket
• Eurorack power cable
• Mounting screws
• LEDs

Modulation & Utility Control

The Rim Dual Attenuverter is a Swiss Army knife for your modular system. Whether you need to scale back an overpowering LFO, invert an envelope for creative modulation, or use the top channel as a manual offset generator to open a filter, Rim provides precise, predictable attenuation and inversion in a highly compact footprint.

DIY Build & Assembly

The PCB is clearly labeled to assist with assembly, and the pre-assembled SMD components significantly reduce build time and difficulty. All remaining components are through-hole and straightforward to install.

The front panel is made from high-quality PCB material with a black solder mask, factory-printed white markings, and gold-plated (ENIG) exposed copper, delivering a durable, modern, and professional appearance that perfectly matches a clean, dark aesthetic.

Technical Specifications

• Width: 4HP
• Type: Full DIY Kit (SMD Pre-Assembled)

This full kit offers a complete, high-quality build experience, delivering crucial signal routing flexibility and utility with a refined, modern aesthetic.
