4024 Sub Oscillator / Eurorack / PCB and Front Panel

4024 Sub Oscillator

The 4024 Sub Oscillator Eurorack PCB and Front Panel Kit is a DIY sub-octave generator designed for Eurorack modular synthesizer systems. Built around the classic 4024 CMOS IC, this module generates deep sub frequencies and provides flexible octave division for expanding the low-end of your patches.

Key Features

• Eurorack PCB and front panel kit
• Based on the 4024 CMOS IC
• Sub-octave generation with octave selection switches
• Ideal for creating deep bass and low-frequency layers
• Compact 6HP Eurorack format
• Beginner-friendly build

Sound & Application

The 4024 Sub Oscillator divides an incoming signal into lower octaves, making it a powerful tool for reinforcing bass lines, adding weight to leads, or creating thick, layered textures. Octave switches allow quick selection of different sub-octave ranges for versatile sonic shaping.

DIY Build & Front Panel

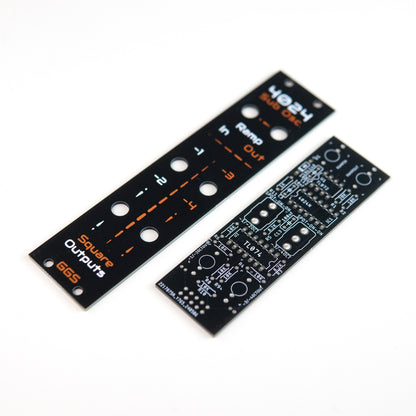

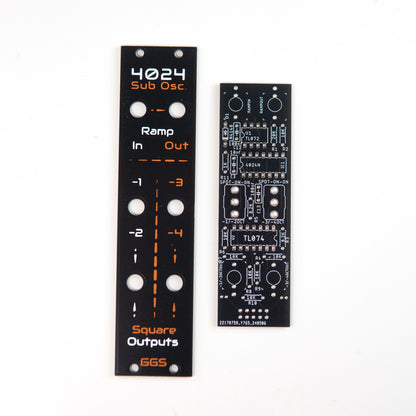

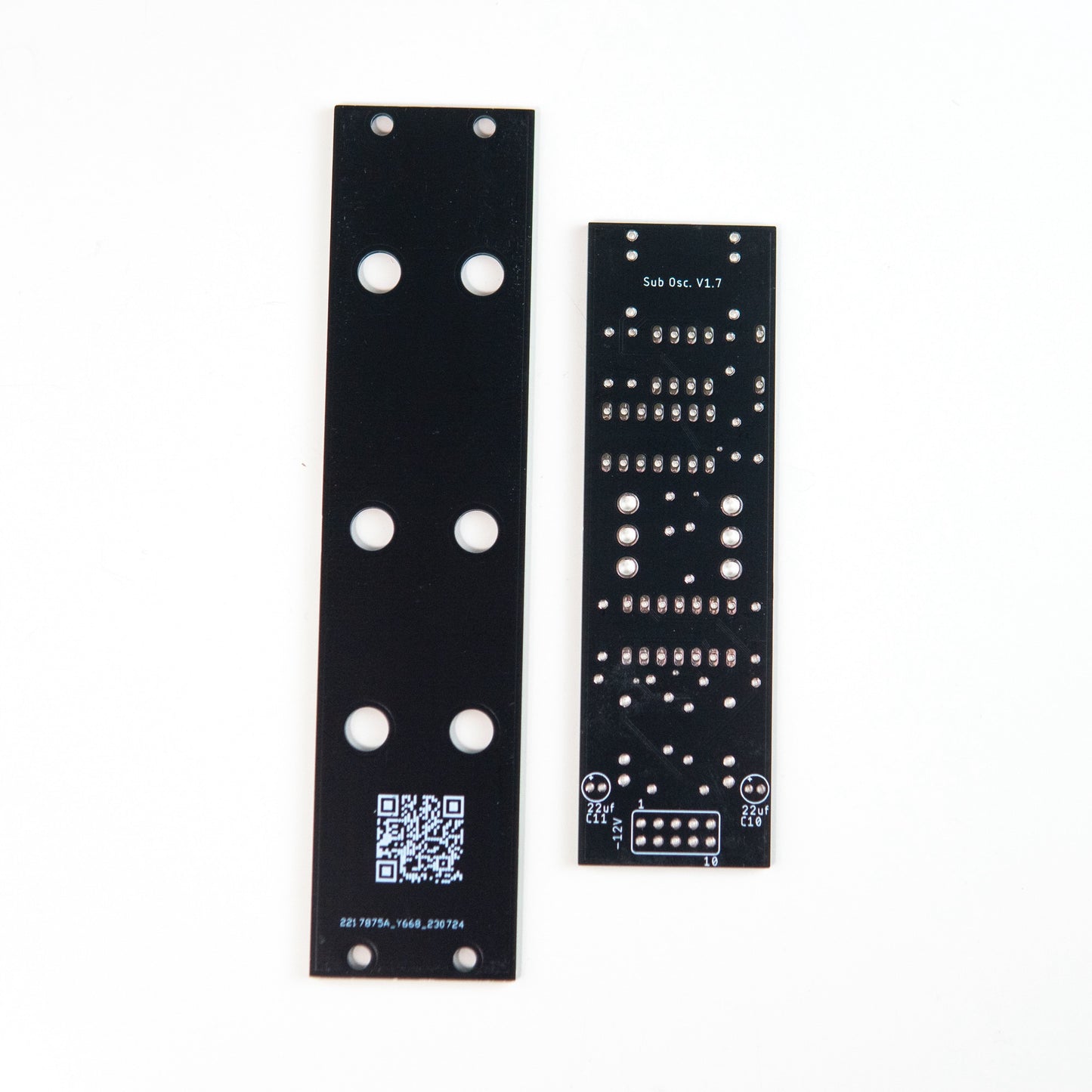

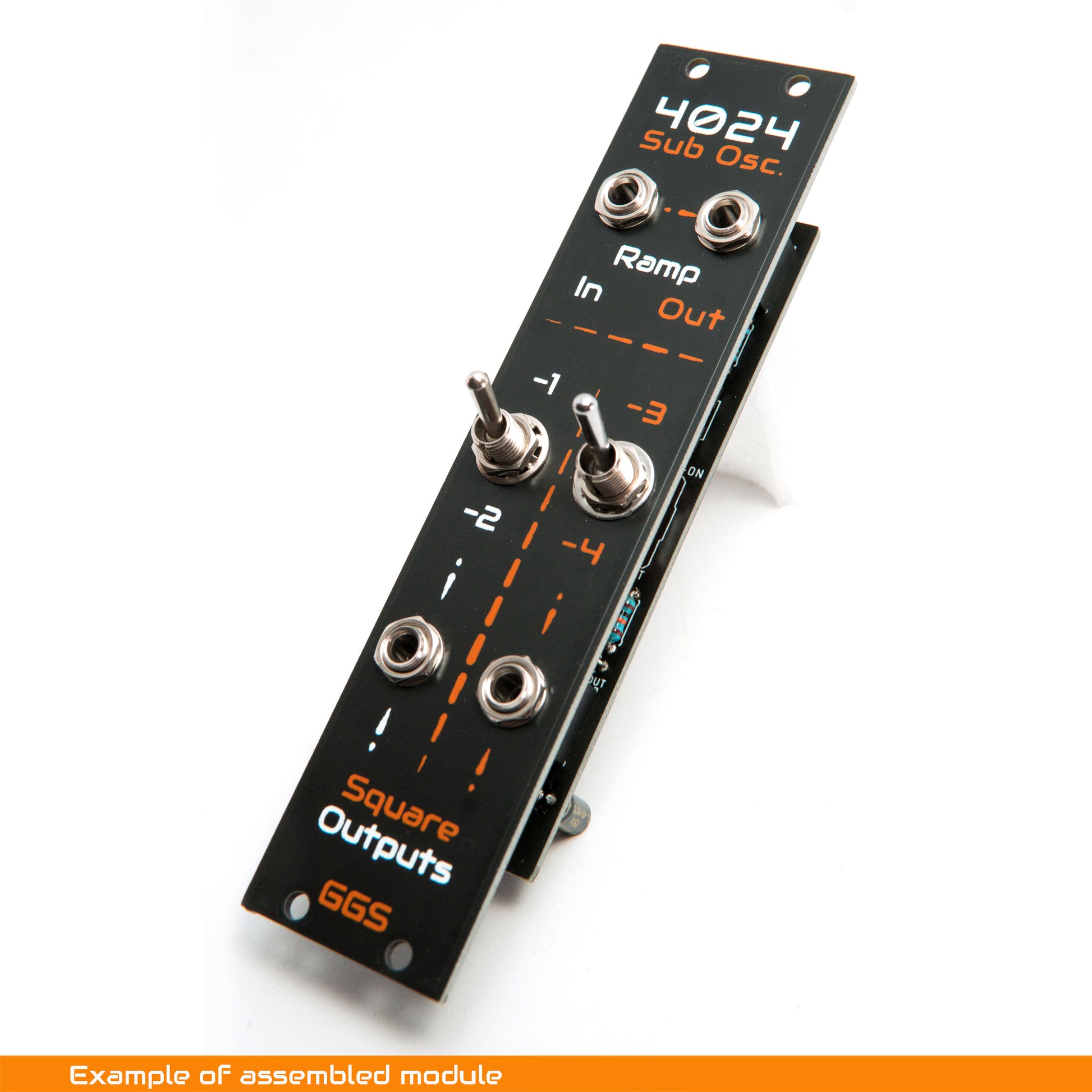

This DIY Eurorack sub oscillator PCB and front panel kit is designed to be approachable for beginners. The module includes a high-quality PCB and a hand screen-printed front panel made from PCB material, ensuring both reliability and a distinctive visual finish.

Technical Specifications

• Format: Eurorack
• Width: 6HP
• Depth: 25mm

• Core IC: 4024 CMOS

Skiff Friendly Module

Compatible items such as knobs, potentiometers, jack sockets, and other build components can also be found in the Synth Parts category.

Video Demo
