4017 Step Sequencer / Eurorack / PCB & Front Panel

4017 Sequencer

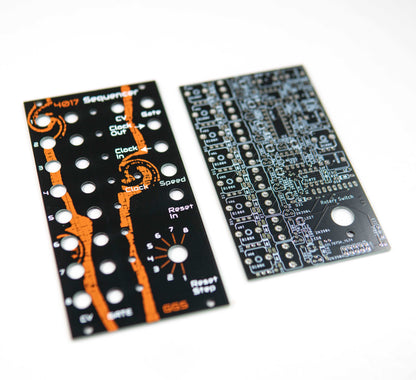

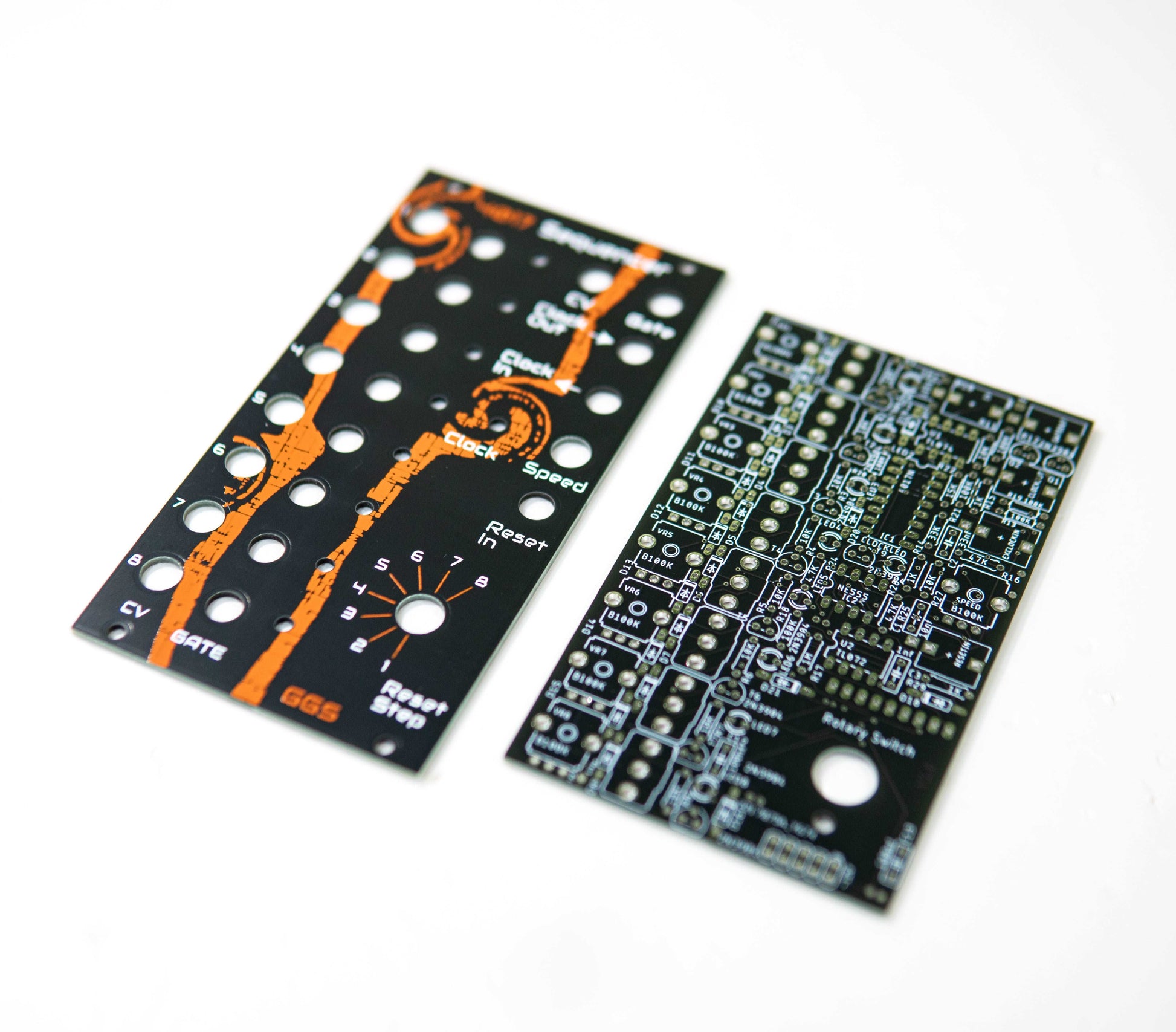

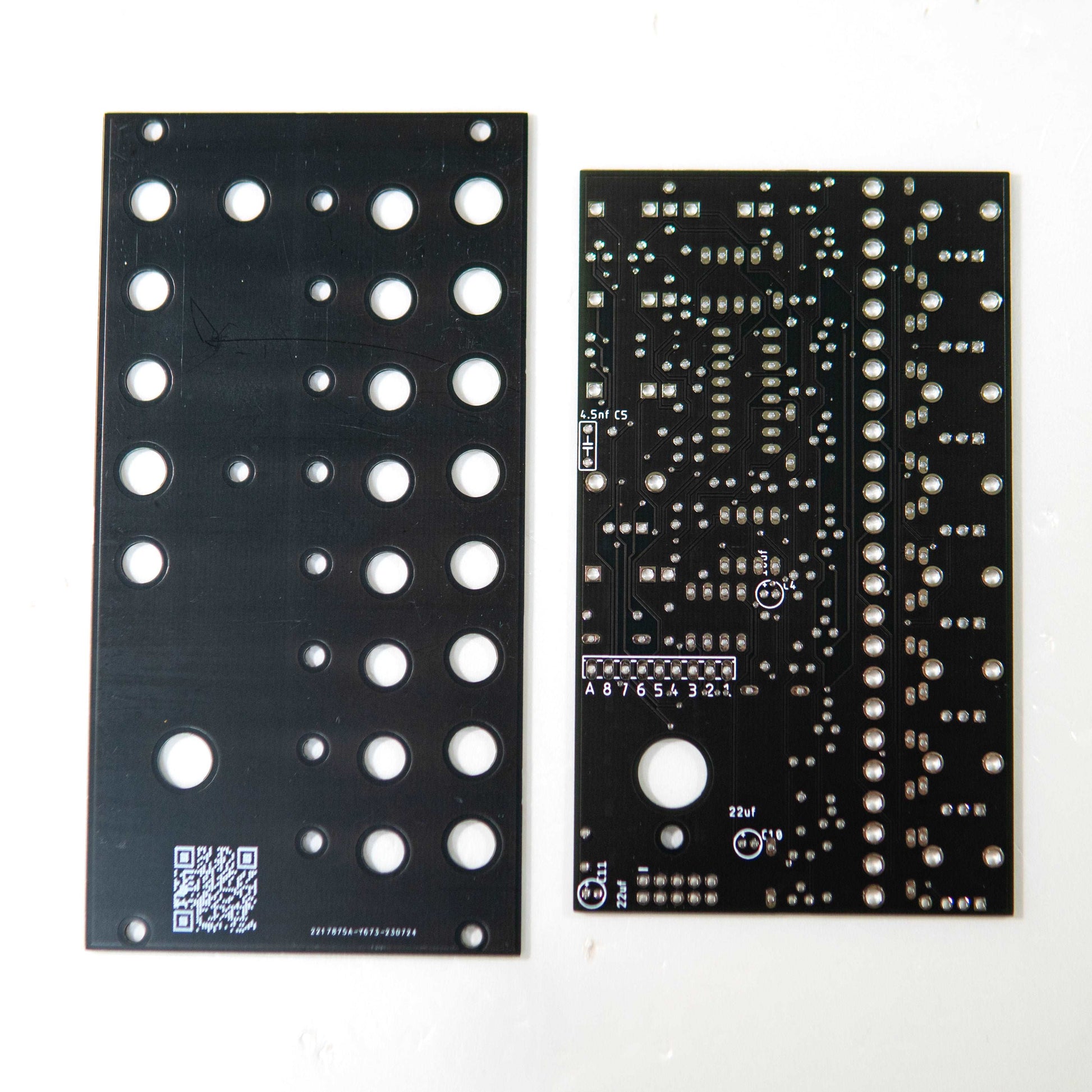

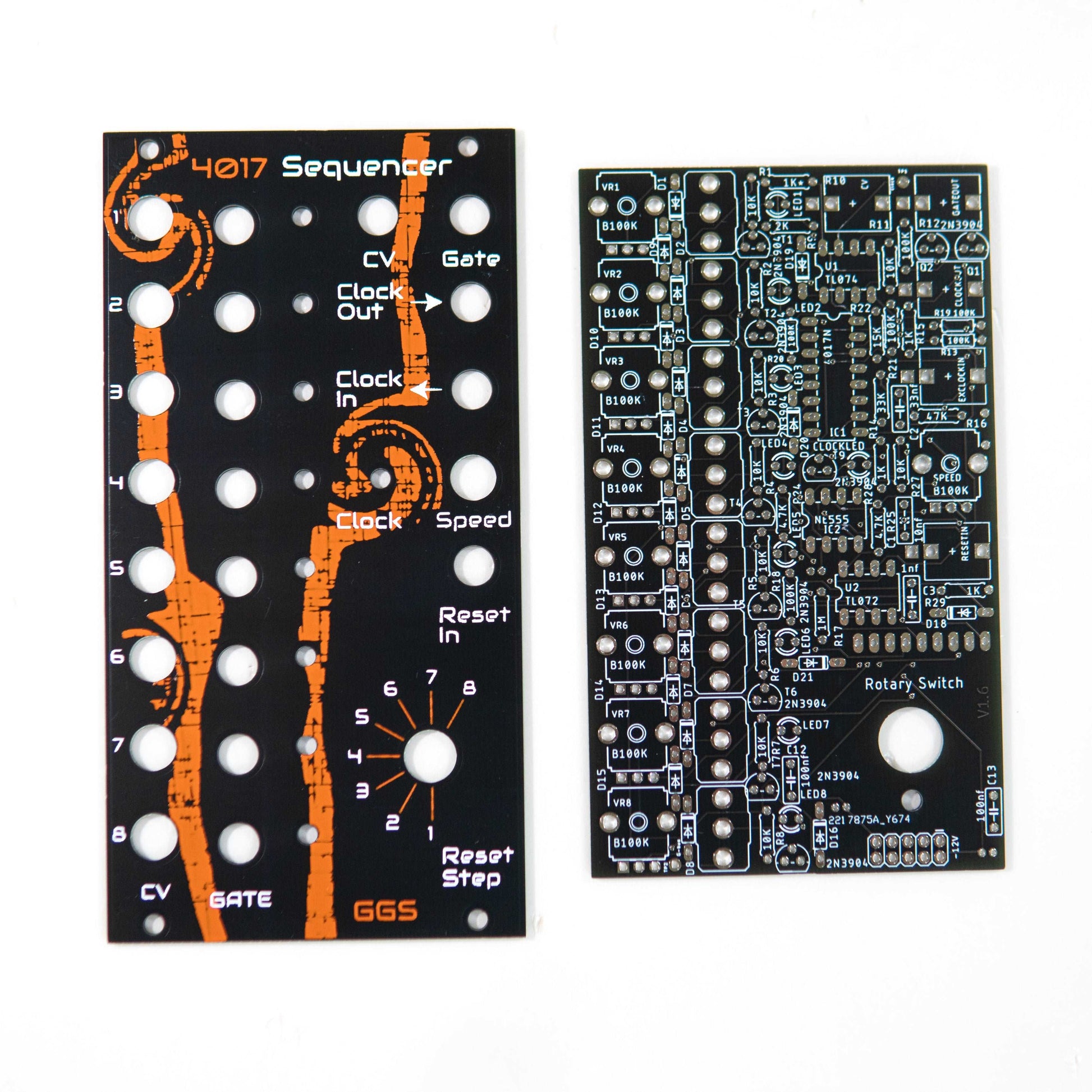

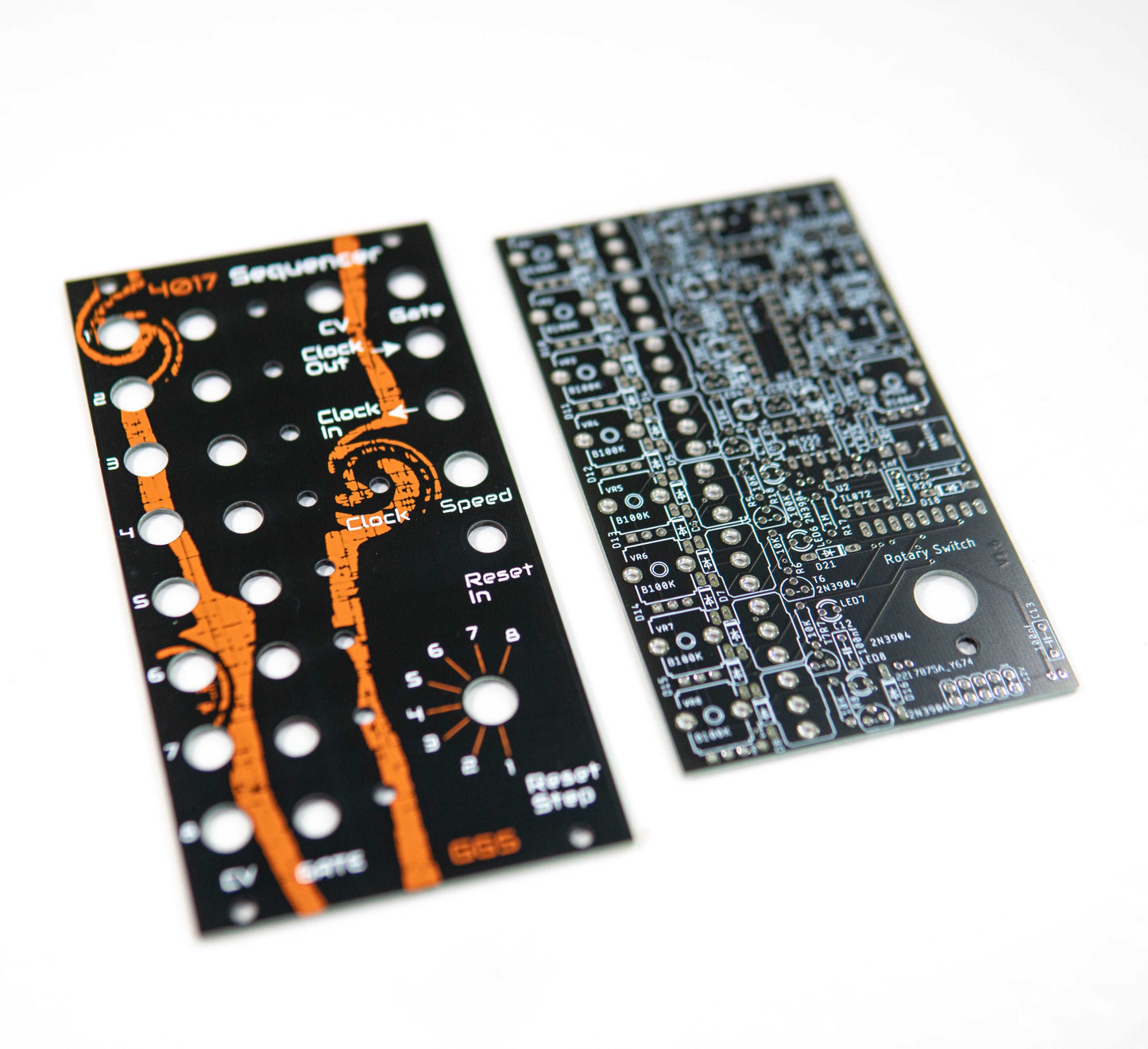

PCB and Front Panel.

• Format: Eurorack

• Skill Level: Intermediate / Advance.

• Size: 12HP

• Based on the revered 4017 integrated circuit, this step sequencer boasts an 8-step sequence length, granting you the power to shape intricate musical patterns with ease.

• Rotary switch allows on-the-fly adjustment and reset at any step, putting you in complete control of your composition. For even finer precision, utilize the reset CV input to orchestrate your sequences down to the microbeat.

• Each of the eight steps features a dedicated potentiometer for CV modulation and a responsive gate switch, empowering you to sculpt your sound with precision. The internal clock, driven by a 555 IC, ensures accurate timing and rhythm. Seamlessly sync with external clocks to integrate flawlessly with your setup, or leverage the clock out feature to reign as the master sequencer of your modular universe.

• Please note, this advanced build is not suited for beginners and requires meticulous attention during assembly. The densely populated PCB and wiring requirements demand an experienced hand. The front panel, meticulously screen printed by hand, showcases the dedication poured into every detail of this masterpiece.
