3350 Multimode VCF / Eurorack / PCB and Front Panel

3350 Multimode VCF

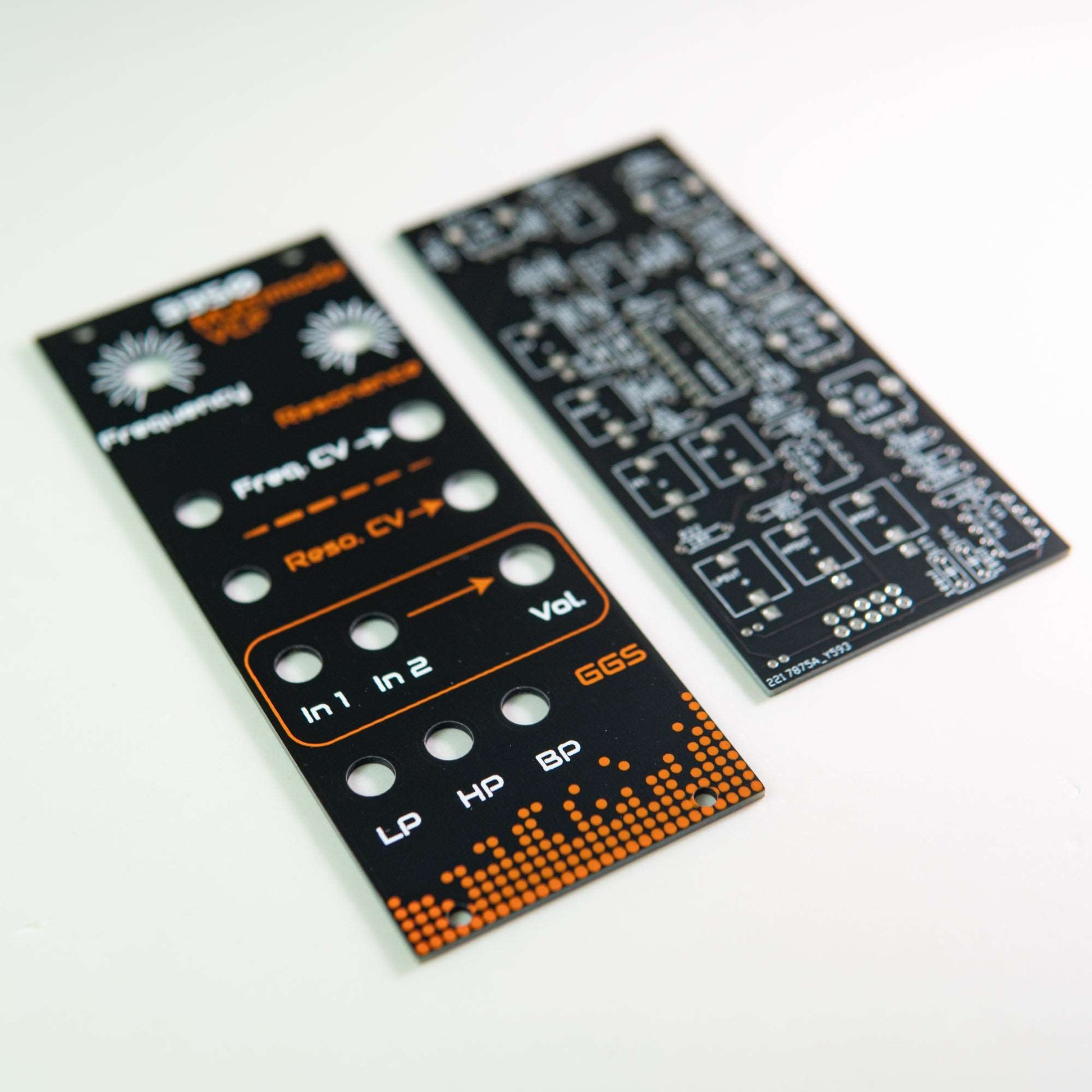

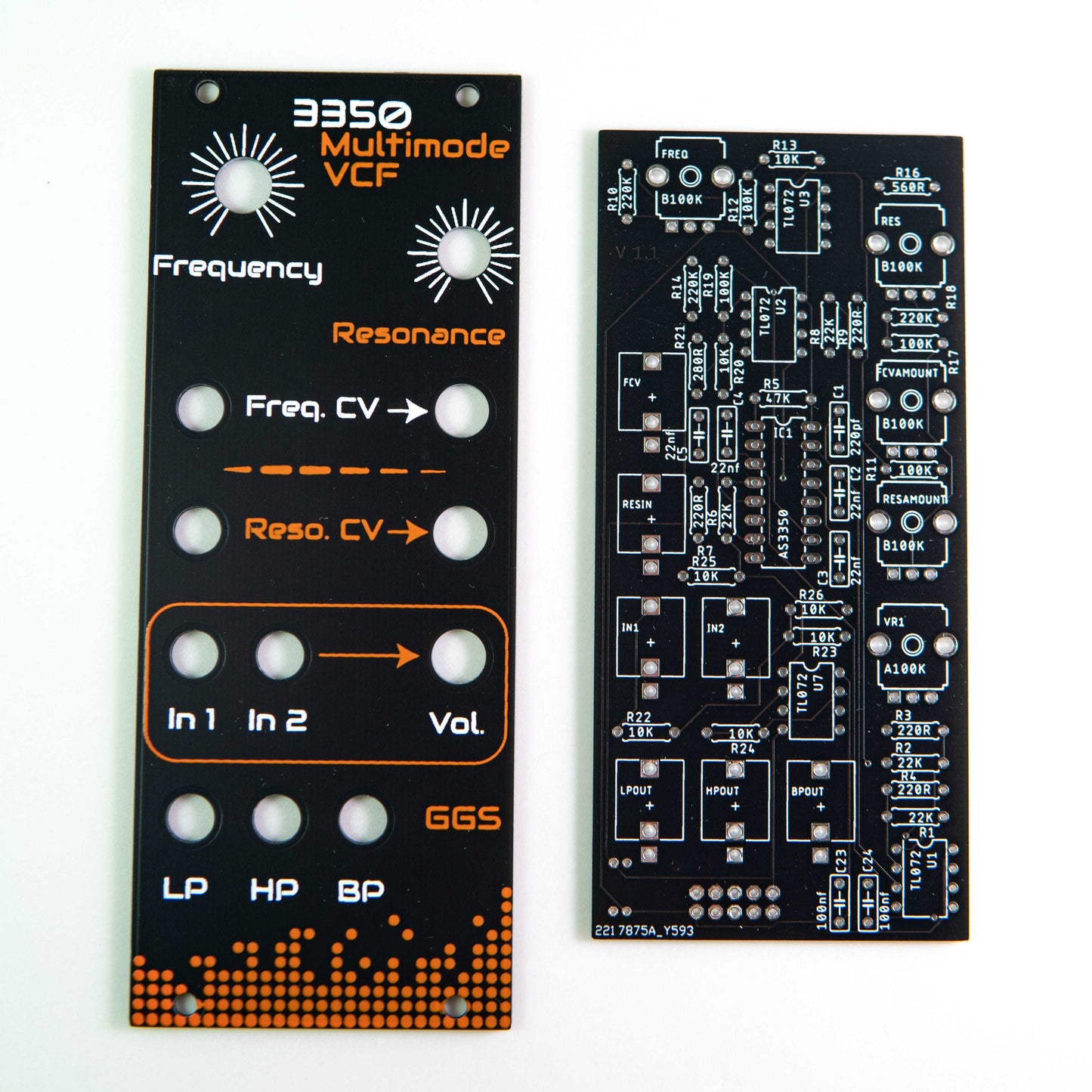

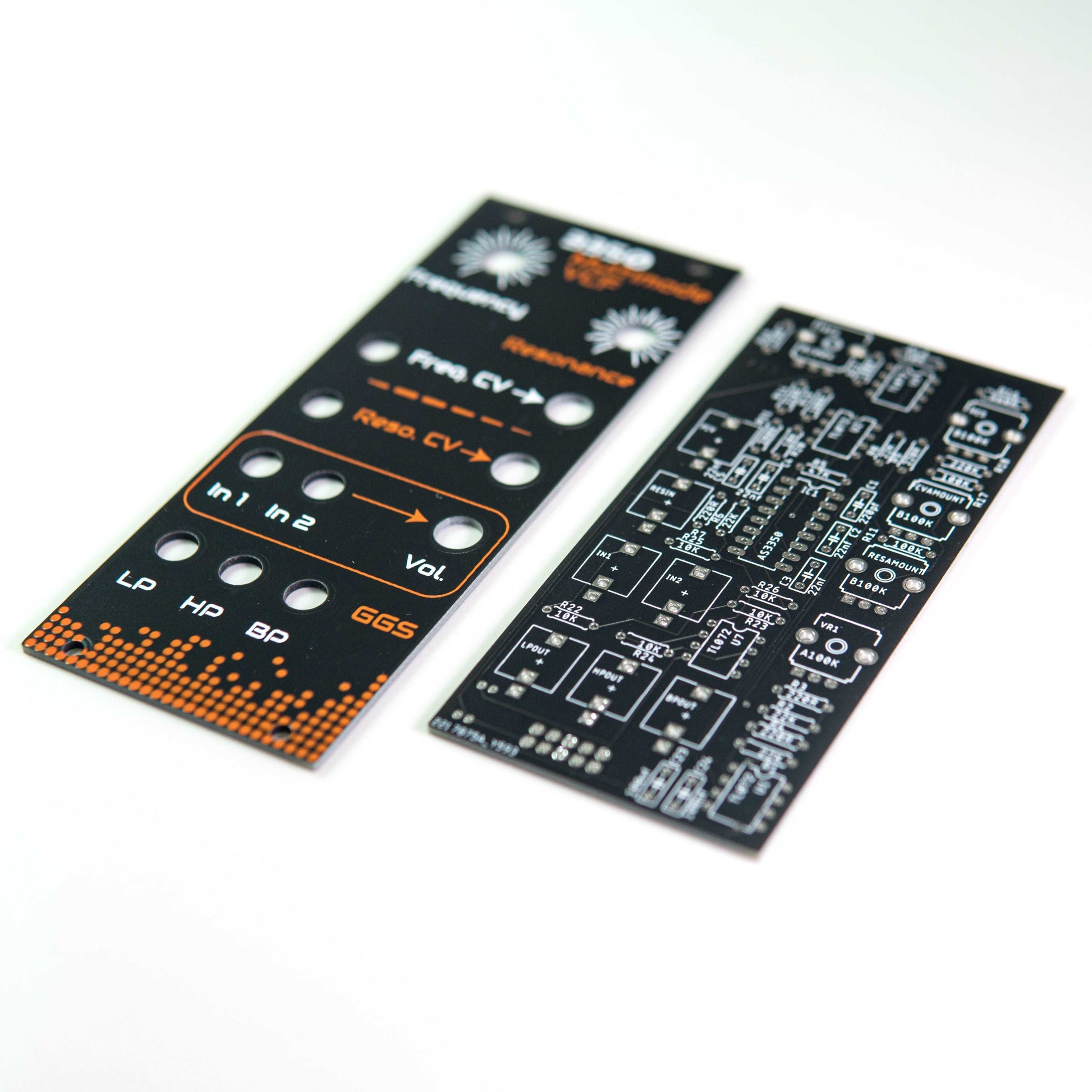

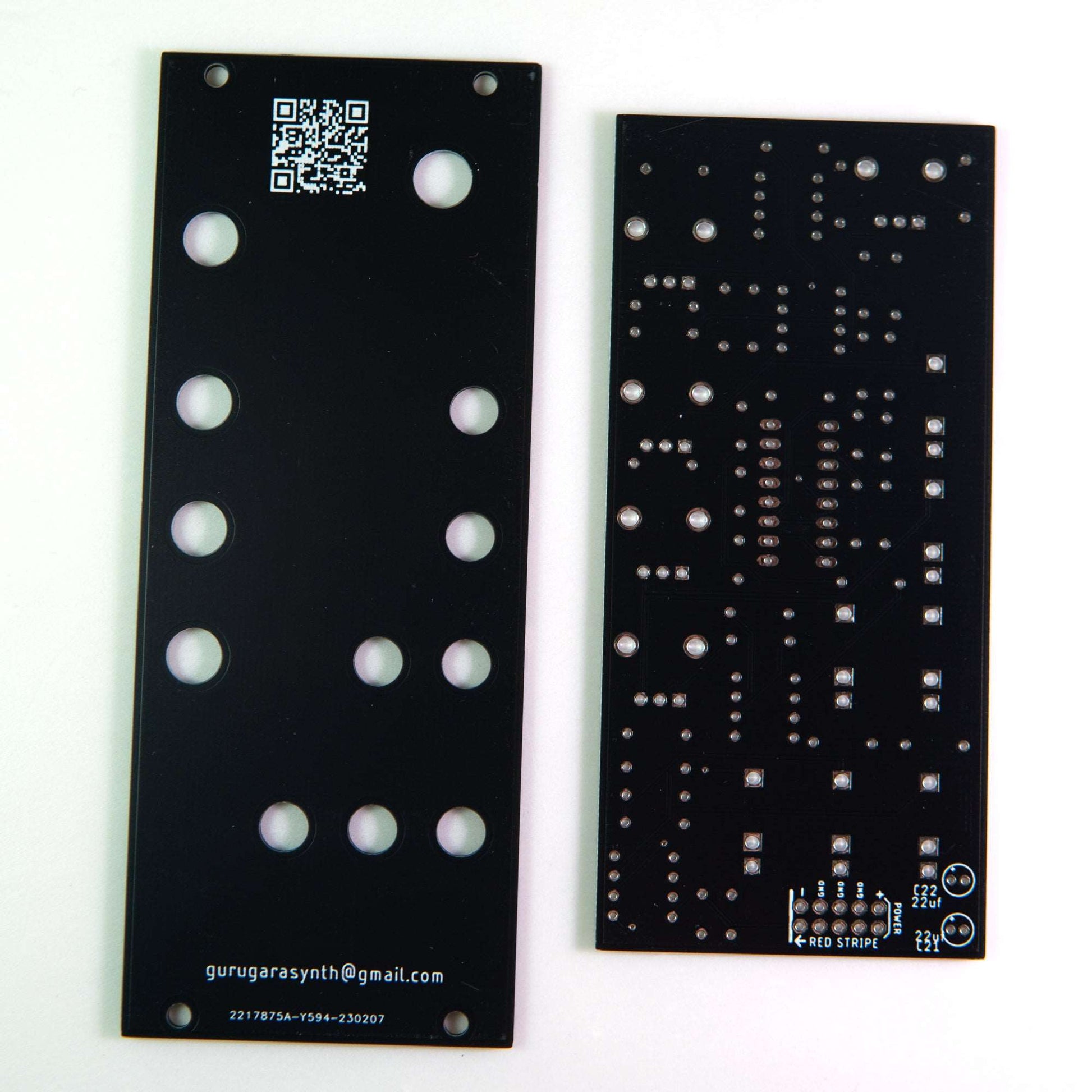

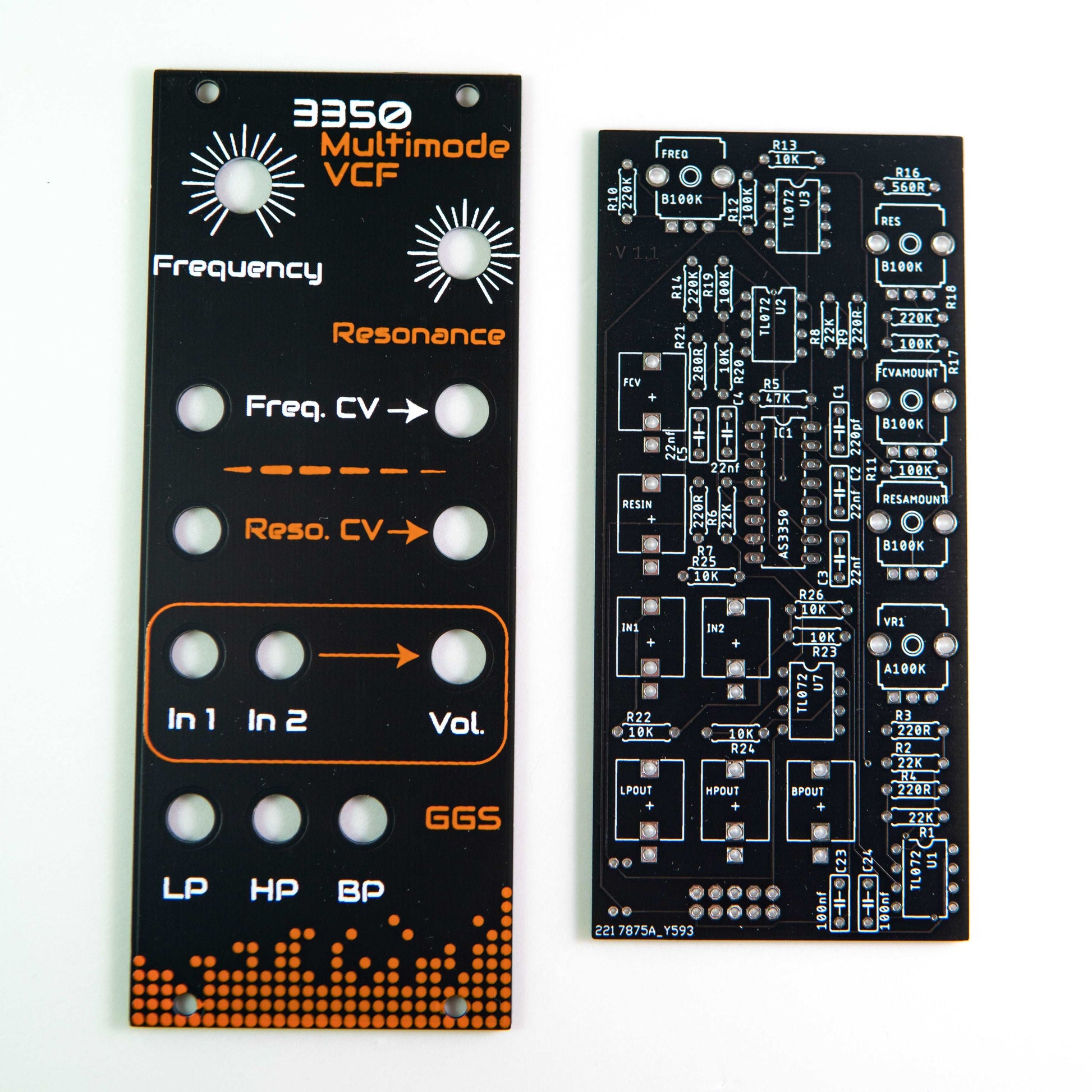

PCB and Front Panel

• Format: Eurorack

• Size: 10HP

• Skill Level: Beginner / Intermediate

• Introducing a powerful circuit at the heart of this device, based on the versatile 3350 IC. Whether it's the CEM3350, AS3350, or an equivalent chip, rest assured it will perform flawlessly. With user-friendly frequency and resonance potentiometers, along with CV input and amount potentiometer, you have precise control over frequency and resonance modulation.

• The integrated audio mixer boasts two audio inputs. Input 1 comes preset at maximum volume, while input 2 grants you the freedom to adjust the volume to achieve your desired mix. Say goodbye to the need for a separate mixer module when connecting two oscillators – this device simplifies your setup.

• With three outputs available – low pass, high pass, and bend pass – your sound possibilities expand exponentially. The versatility of this circuit allows you to explore and create an array of audio effects and textures.
