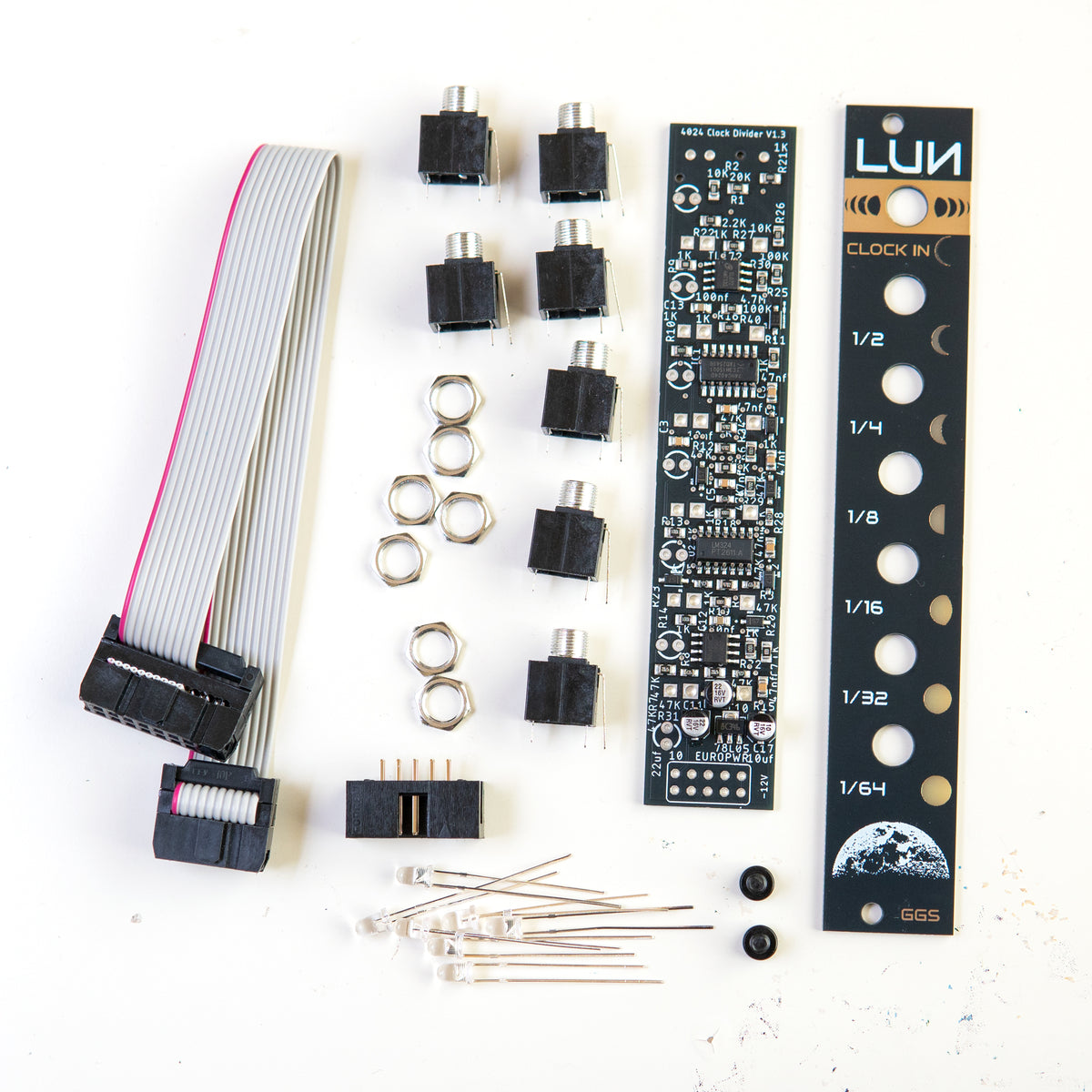

  • LUN - Eurorack modules synthesiser clock divider module full kit. all components and PCBs on white background. Lunar Clock writing visible on back of the EING finished PCB art front panel.

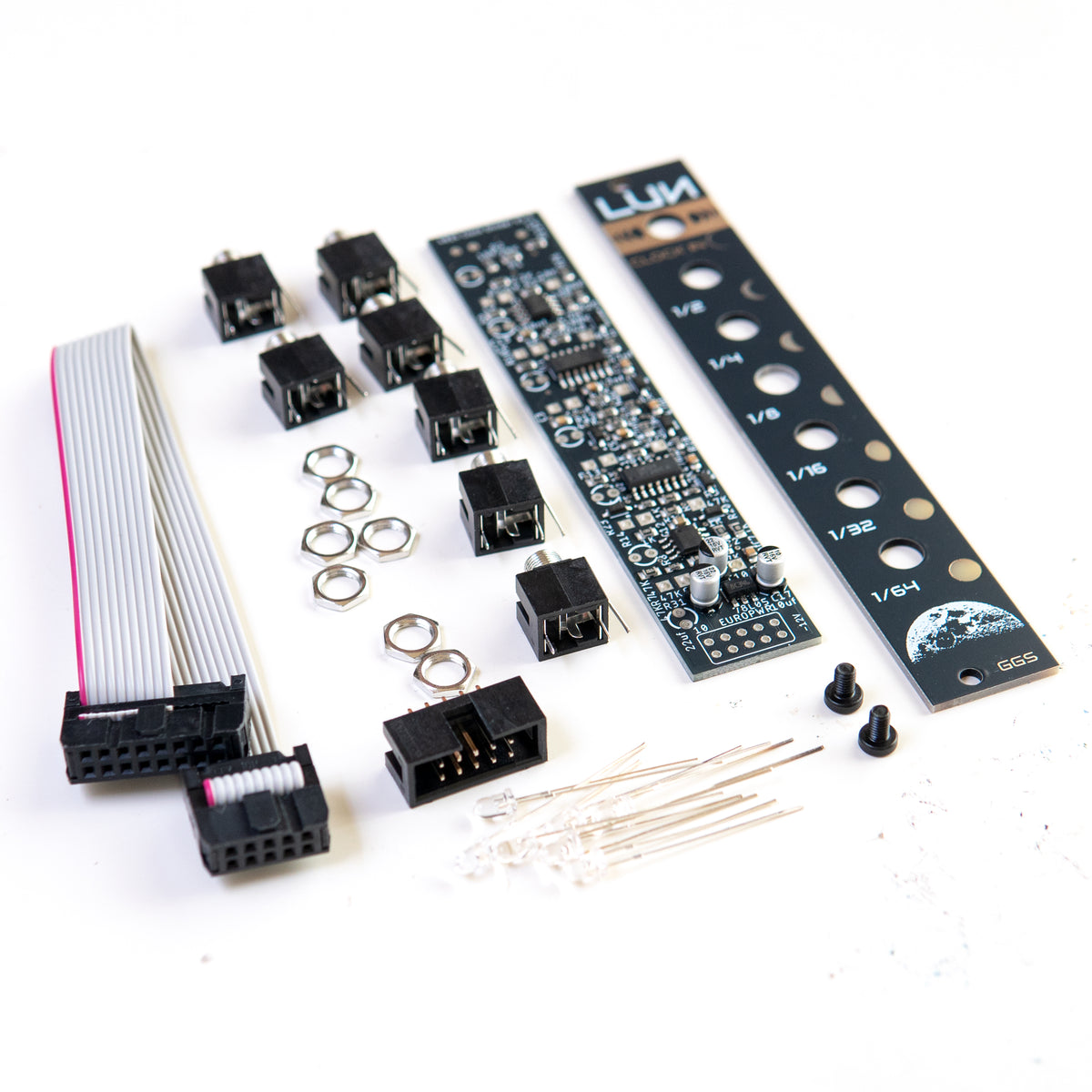

  • LUN - Eurorack modules synthesizer clock divider module full kit. all components and PCBs on white background.

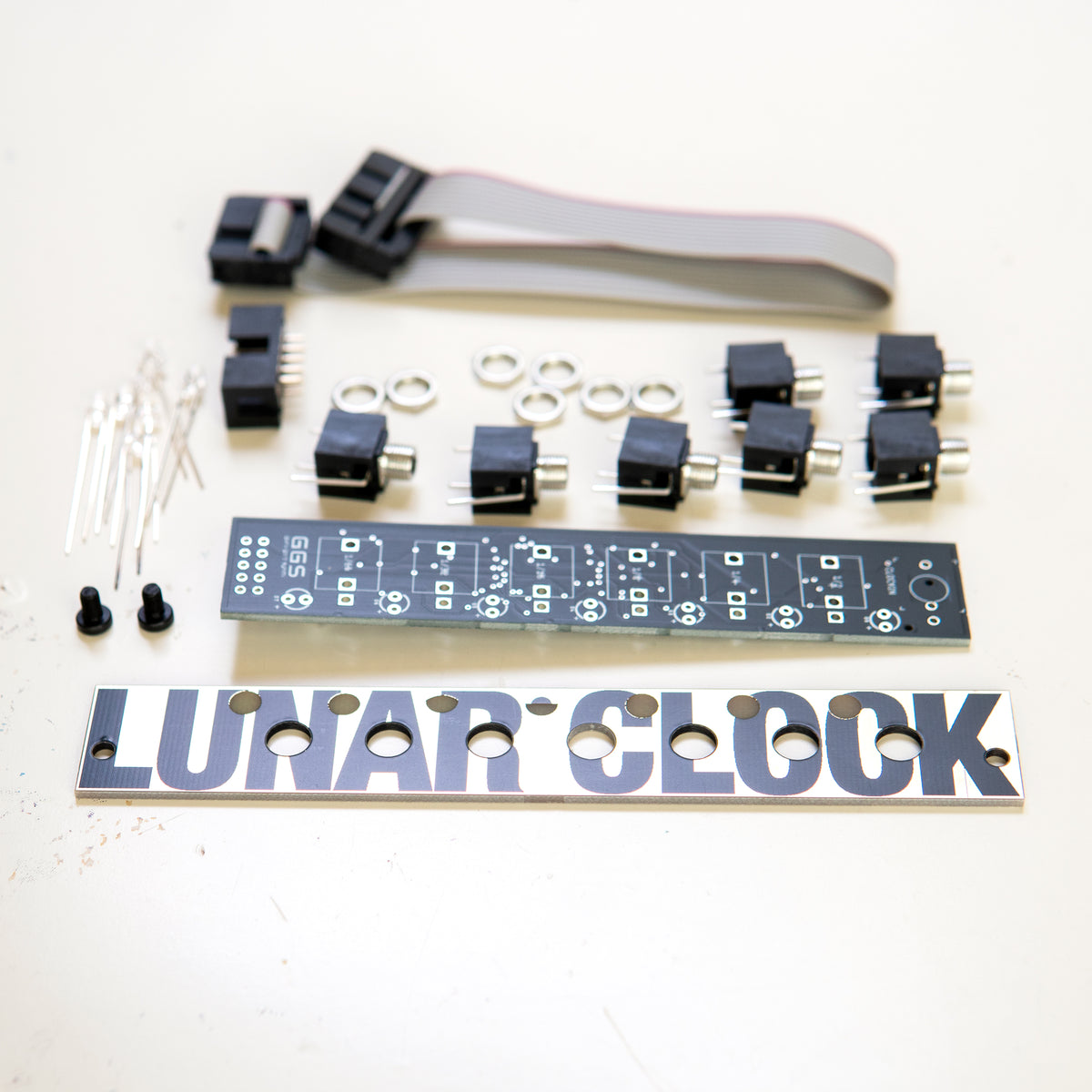

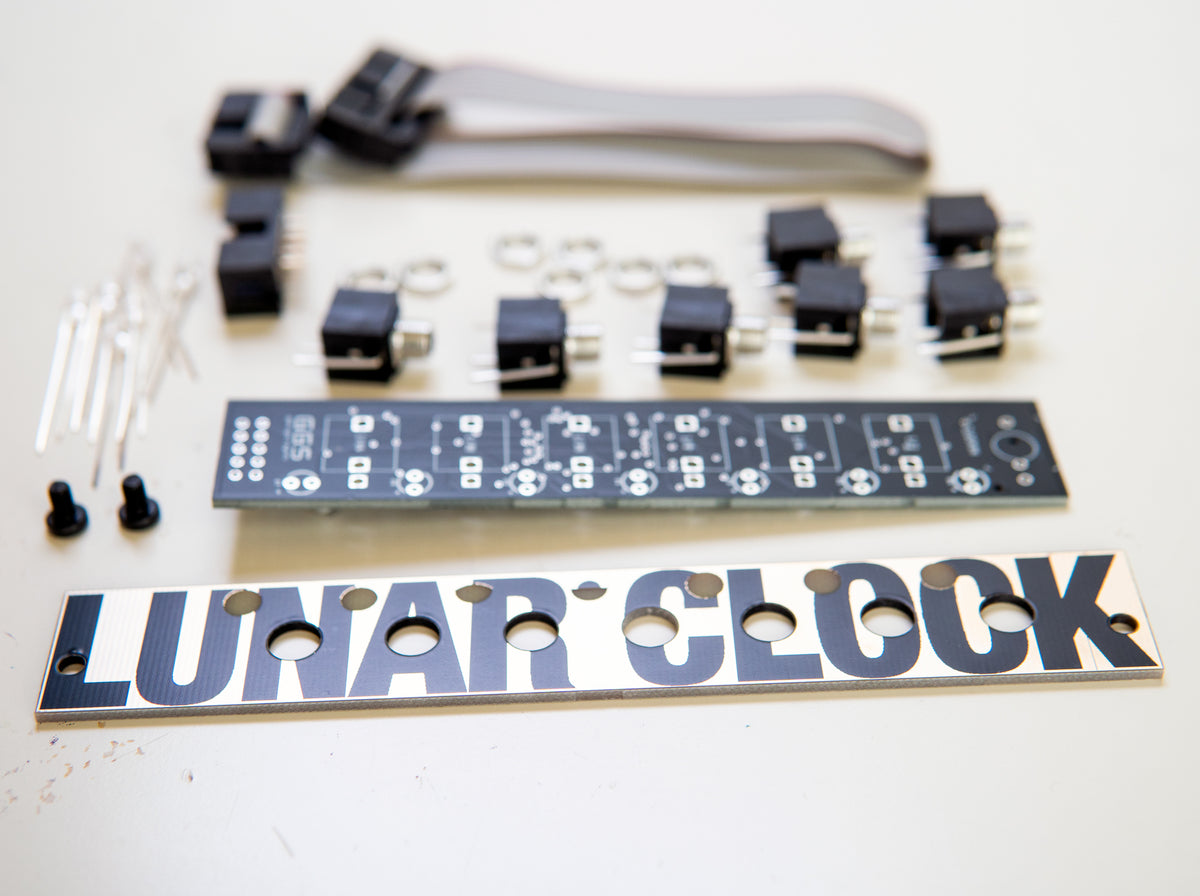

  • Eurorack DIY clock divider module full kit. all components, SMD preassembled PCB and front panel visible. Lunar Clock is written on the bottom side of the front panel. Gold plated EING finished PCB Art.

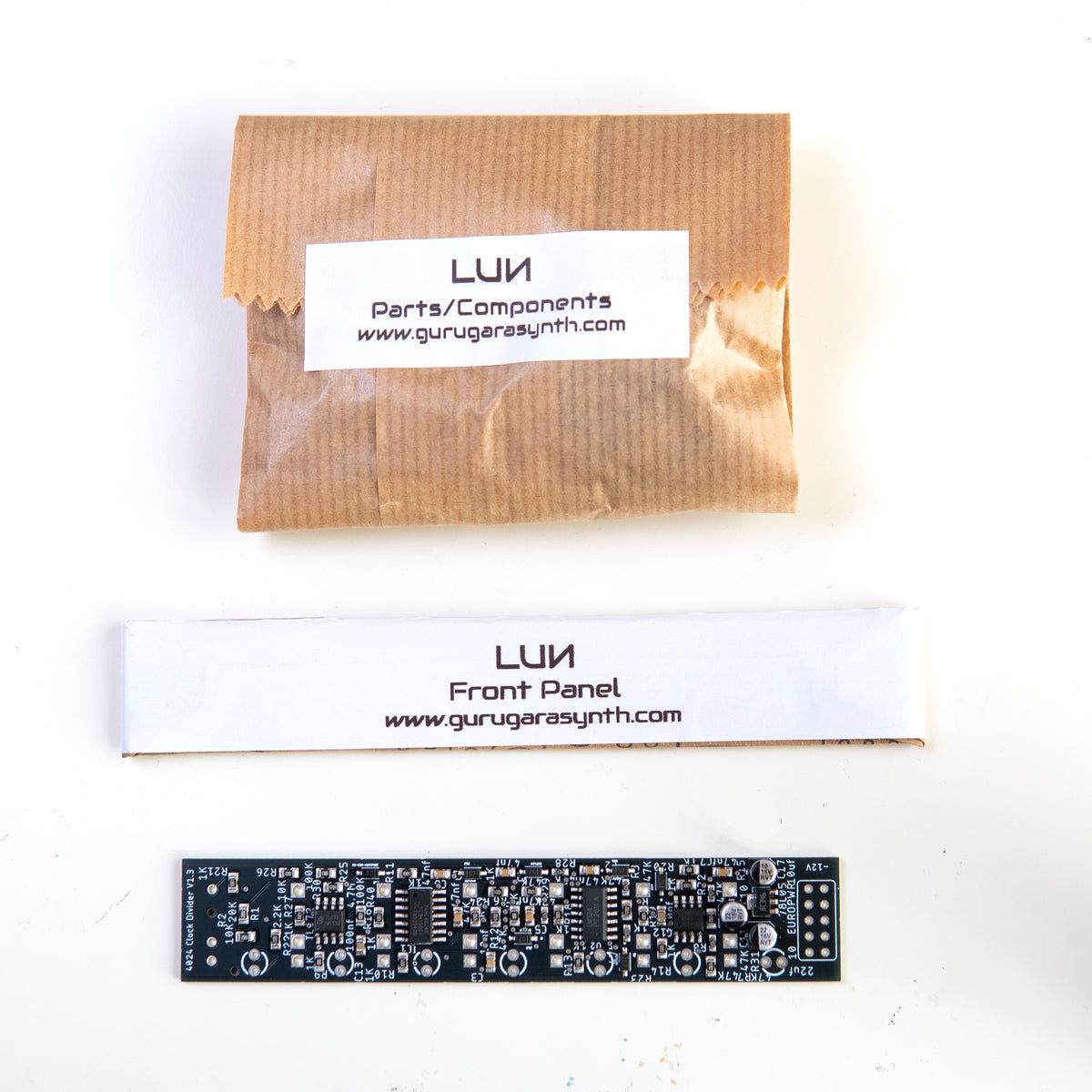

  • LUN - eurorack clock divider module full kit. all components are packed on a craft paper package. Photographed with the AMD assembled PCB + PCB art front panel packed in craft paper on white background.
  • Eurorack clock divider module, LUN. angled photo with white background. black, white and gold (EING) PCB art fornt panel and jack sockets are visible. Moon theme in the design.
1 7

LUN | Clock Divider | DIY Eurorack Full Kit | 4HP

LUN | Clock Divider | DIY Eurorack Full Kit | 4HP

€49,99 EUR
€49,99 EUR
Sale Ausverkauft
inkl. MwSt. Versand wird beim Checkout berechnet

Niedriger Lagerbestand: 1 verbleibend

The LUN Clock Divider Eurorack full Kit is a compact 4HP rhythmic utility designed to split master clock or audio signals into precise binary divisions. Featuring pre-assembled factory SMD components, this complete DIY kit offers a fast, foolproof build requiring only simple through-hole soldering for jacks and headers.

Concept & Design

Part of the 4HP Space Family, LUN, short for Lunar Clock, which is boldly printed across the back of the front panel - acts as your system's rhythmic timepiece. Each of its six division outputs features a unique backlit moon phase graphic that illuminates with incoming pulses, anchored by an elegant half-moon illustration at the base.

Key Features

  • Complete DIY Kit: Includes PCB, panel, and all through-hole components.
  • SMD Pre-Assembled: Surface-mount components are factory-soldered for an easy build.
  • 4024 Binary Counter: Delivers rock-solid division from 1/2 down to 1/64.
  • Illuminated Moon Indicators: Custom light-transmissive panel shapes show gate activity.
  • Audio & Clock Utility: Use it for polyrhythmic triggers or multi-octave sub-bass generation.

Specs & Panel Details

  • Width: 4HP
  • Inputs/Outputs: 1 Clock In, 6 Division Outputs (/2, /4, /8, /16, /32, /64)
  • Panel Aesthetic: Black solder mask, white silkscreen, and gold-plated (ENIG) exposed copper
  • Format: Full DIY Kit (SMD Pre-Assembled)

Important Assembly Note:

Please note a minor silkscreen correction on the main PCB: the polarity indicator for the /64 LED is reversed. Be sure to install the /64 LED in the opposite orientation relative to the board marking (anode/long leg opposite the + marked indicator). All other LED orientations are correct as labeled.

Skiff Friendly Module

Photo of a Eurorack module taken from the side to show the depth of the modules. Skiff Friendly.Video

Showing the backlit moon cycle indicators.
