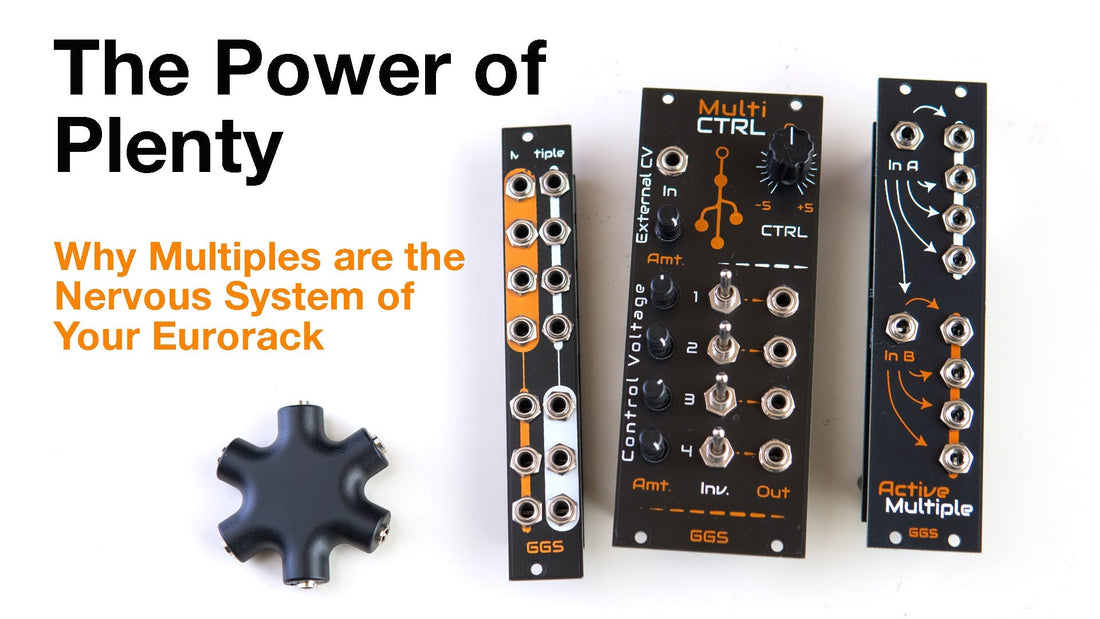

If you’re building your first Eurorack system, "Multiples" (or "Mults") might seem like the most boring way to spend your HP. They don’t make earth-shattering bass, they don’t filter frequencies, and they don’t sparkle with LEDs.
But here is the truth: Multiples are the nervous system of your rack. Without them, your patches are stuck in a "one-to-one" relationship. With them, a single signal can rule your entire synth. Here is a breakdown of how they work, the different types you’ll encounter, and how to use them like a pro.
What Exactly is a Multiple?
In short, a multiple takes one signal and splits it into several identical copies. This allows you to send a single Pitch CV to three different oscillators, or one Clock signal to four different sequencers simultaneously.
1. Passive Multiples (The Simple Classics)
Passive mults are the most common. They don't require any power because they are essentially just sockets wired together behind the panel.
- Best for: Gates, Triggers, and Clocks.
- The Caveat: Because they are unpowered, splitting a Pitch CV signal across too many destinations can cause a slight voltage drop (loading), which might pull your oscillators out of tune.
2. Active (Buffered) Multiples
Active mults use internal circuitry to "buffer" the signal. They replicate the incoming voltage exactly at each output with zero loss.
- Best for: Pitch CV ($1\text{V/Oct}$). If you want three oscillators to stay perfectly in tune while playing the same melody, a buffered mult is the way to go.
3. Non-Module Multiples (The Space Savers)
Don’t want to give up precious HP for a utility? You have options:
- Stackcables: Patch cables with a built-in jack on the back of the plug.
- Hubs: Small "star" shaped blocks that sit outside your rack to split signals on your desk.
4. The "Invisible" Multiple: The Power Bus
One of the best-kept secrets in Eurorack is the Internal Power Bus. Many bus boards have dedicated lines for CV and Gate that often go unused, but they can act as a "hidden" multiple behind your modules.
We are big fans of this clean workflow. In our 3340 VCO and 3310 ADSR, we utilize switched jacks for the $1\text{V/Oct}$ and Gate inputs.
- How it works: If the input jack is empty, the module automatically "listens" to the CV or Gate signal traveling along your power bus.
- The Benefit: As soon as you plug a cable into the front panel, it "breaks" that connection and prioritizes your patch cable. This allows you to sync an entire voice architecture through the back of the system, keeping your front panel clutter-free.
5. Beyond the Split: The "Mult CTRL" Approach
Standard multiples are great for copying signals, but they are "static"—the copy is exactly like the original. Sometimes, a patch needs more nuance. This is where Voltage Processing comes in.
We designed our Mult CTRL module to act as an "Active Mult with an Attitude." It doesn't just duplicate; it tailors:
- Independent Shaping: With four dedicated "Amount" pots and "Invert" switches, one LFO can make one module "open" while another "closes."
- The Offset Secret: A dedicated $-5\text{V}$ to $+5\text{V}$ offset allows you to shift the "center point" of your modulation. It’s the difference between a filter sweep that stays in the mud and one that reaches the clouds.
Why You Need More Mults
- Complexity: One LFO can modulate your filter, your wavefolder, and your decay time all at once.
- Organization: It keeps your "brain" signals (clocks and pitch) centralized and easy to find.
- Musicality: Using tools like the Mult CTRL ensures that one sequence can generate four unique, harmonized variations across your rack.
